SuperPro

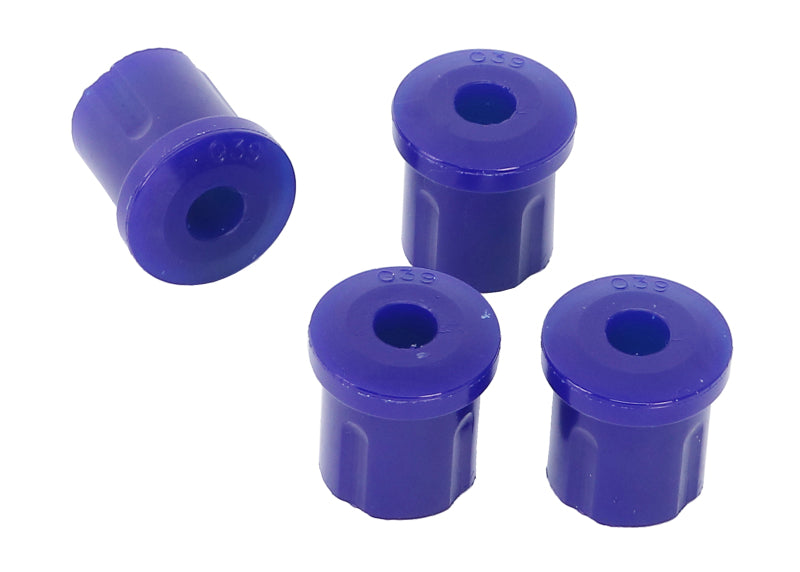

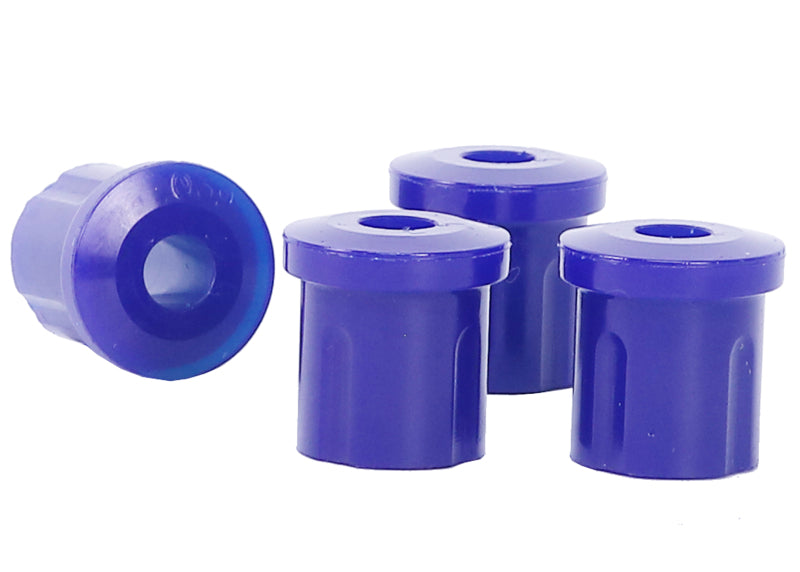

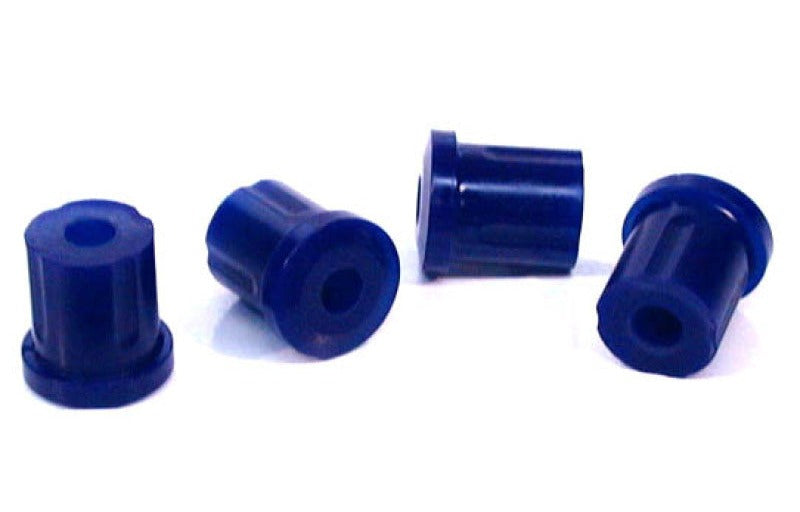

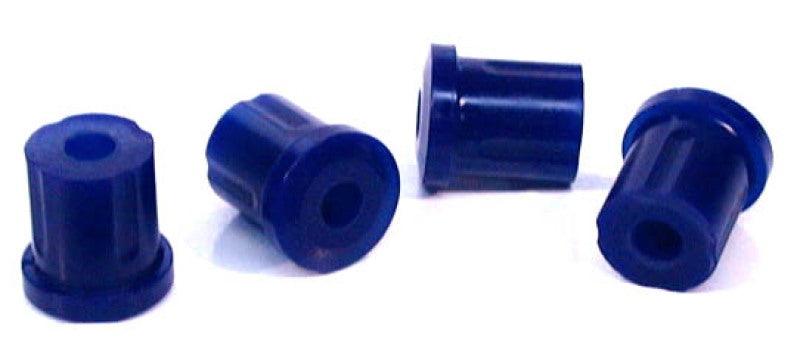

SuperPro Rear Leaf Spring Bushing Kit SPF0039K
SuperPro Rear Leaf Spring Bushing Kit SPF0039K
Couldn't load pickup availability
These bushings are often overlooked when upgrading the suspension of a 4WD. Leaf spring bushings stabilize the movement of the rear axle, inferior bushes in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle. It also causes the vehicle to 'wander' all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing a boat or caravan. The OE rubber style bushes are designed to work at standard height with standard tires and with standard loads. By fitting SuperPro Bushings and upgrading to Greaseable Shackles the rear end of your 4WD will handle just about anything you can throw at it!
SPR Bushings - Leaf Spring
Vehicle Fitment
- 1972-1978 Mazda RX-3
Specifications
- Manufacturer Part Number: SPF0039K
- Supplier Part Number: sprSPF0039K
- Type: Leaf Spring Bushing
- Shipping Dimensions: 9 x 6 x 0.1 in
- Shipping Weight: 0.18 lb
- EAN: 9317745000396
- Installation Time: 1 Hour
- Bush Type: 1
- QTY: 4
- OD (A): 24.3
- ID (B): 10
- Length (C): 31.5
- FL (D): 6.5
- FLOD (E): 29
- Kit Contents: 4 Bushings
- Kits Required: 1
- Fitting Position: Rear
- Sub brand: SuperPro SPF
- Product Note: Increase durability and vehicle longevity; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings
Manufacturer Part Number: SPF0039K
Images are for illustrative purposes only. Actual product may vary.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — SuperPro
▾
Manufacturer's Warranty — SuperPro
SuperPro Suspension Bushings, Sway Bars and Suspension Arms are covered by a Lifetime Warranty against manufacturing defects, and SuperPro places no limitation on the scope of use — on-road, off-road, racetrack and competitive motorsport all remain warranty-eligible. Ball Joints, Tie Rod Ends, Duroballs and Links are covered by a 3-year / 36,000-mile / 60,000-km warranty. Cover is limited to replacement of the originally supplied SuperPro component, and SuperPro may supply a superseded version; it does not reimburse or refund warranty-eligible products, installation, alignment or related expenses. Product finish and normal wear are excluded, including surface degradation and corrosion from road salt, debris or the elements, as is damage or premature wear caused by incorrect installation or by failing to align the wheels as recommended. Removal and replacement labour and consequential damage are not covered where local law permits that limit. A claim requires proof of original purchase from an authorised reseller showing the claimant as the purchaser, and the part must have been originally supplied for the specific application listed in the SuperPro catalogue.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by SuperPro. Contact us if you need help with a warranty claim.
