Camburg Engineering CAM-320002 Leaf Spring Shackle Kit (1.5 in) for 2007-2021 Toyota Tundra (2WD and 4WD)
Camburg Engineering CAM-320002 Leaf Spring Shackle Kit (1.5 in) for 2007-2021 Toyota Tundra (2WD and 4WD)
Couldn't load pickup availability
Camburg Engineering CAM-320002 Leaf Spring Shackle Kit, 1.5 in, for 2007-2021 Toyota Tundra.
Not only are they longer than stock to give you the lift you're looking without stiffening the ride, but are built considerably stronger too.
Key Features
- The stock shackles are just stamped out of thin metal and bolted together allowing for quite a bit of unwanted flex

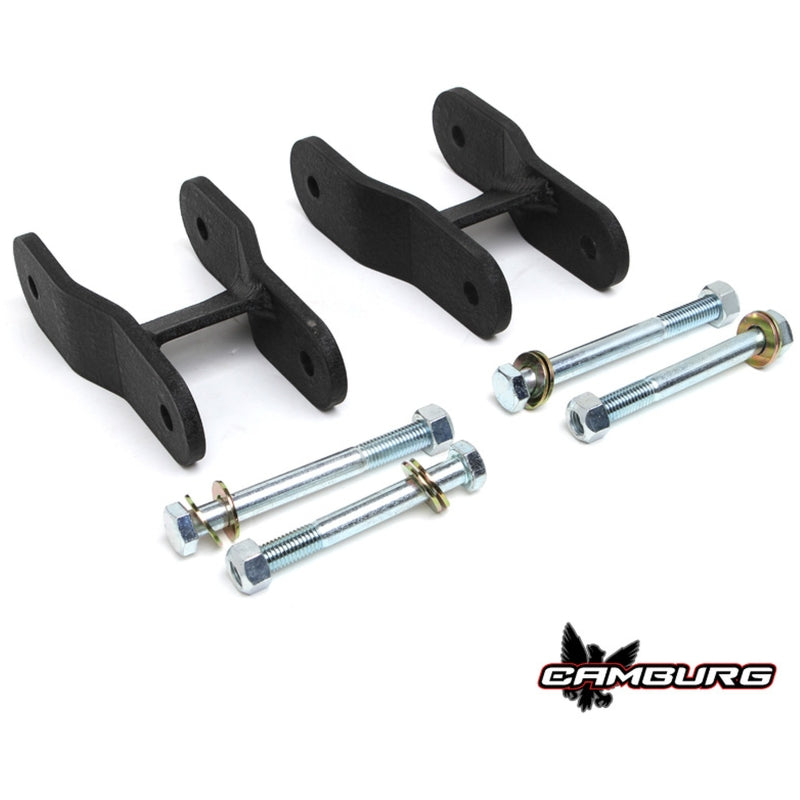

- Our Camburg shackles are laser cut from thick 3/8" steel and have a welded in gusset bridging the side plates together to eliminate flex
- We powder coat them wrinkle black and supply new metric bolts and hardware to bolt right into the factory mounts
- These measure 6" bolt to bolt center in length, the stock shackles measure 4"
- When using these with the stock leaf springs you may need to grind the serrated teeth on the leaf spring pivot sleeves so it slips into our shackle
- These shackles are also needed when running Deaver's K-37 or U-748 leaf spring packs as the stock shackle is too short in length
- When installing, have the M14 bolts with the lock nuts to the outside on both sides and you will re-use the upper sleeve in the frame pivot bushings
- Orientate the shackle like pictured above so that the center gusset clears the frame as it swings back
Fits These Vehicles
- Fits 2007-2021 Toyota Tundra
Confirm the model year, the trim and the part number against your vehicle before ordering.
Camburg Engineering warrants its non-wearable suspension components against defects in material and workmanship with a limited lifetime warranty for the original purchaser under normal use and service. Wearable parts such as uniballs, heim joints, bushings, bump stops and ball joints are covered for 60 days from the date of purchase, and coatings and finishes are covered for 12 months against structural corrosion and manufacturing defects. Improper installation, alteration, commercial vehicle use, racing or competitive use, normal wear, and labor, alignment and shipping costs are not covered.
Specifications
- Brand: Camburg Engineering
- Manufacturer Part Number: CAM-320002
- Type: Leaf Spring Shackle
- Material: Steel
- Manufacturer Warranty: Limited Lifetime Warranty (wearable parts 60 days)
- Condition: New
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
