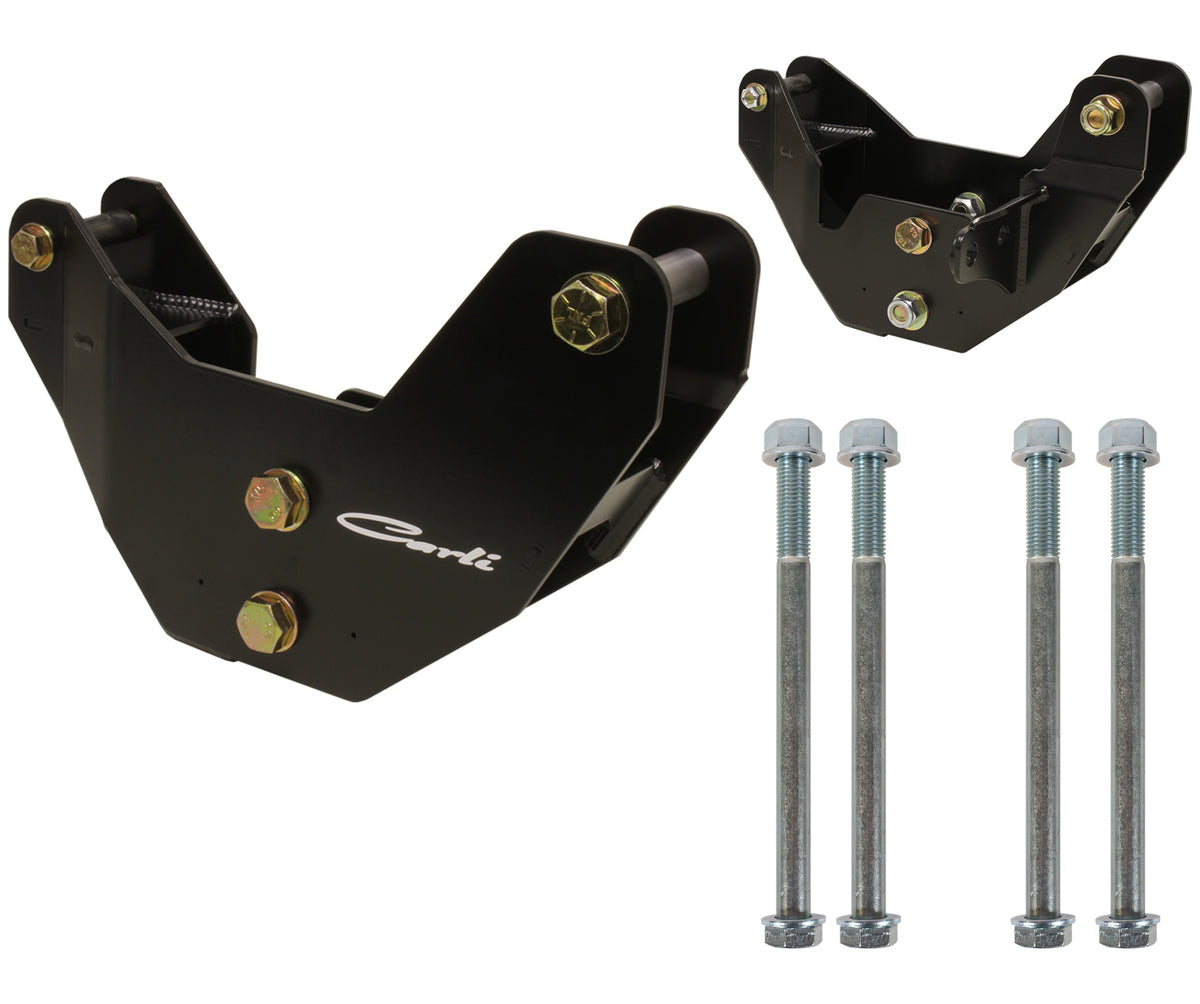

Carli Suspension CS-DRAD-1419 Radius Arm Drop Brackets 3.25 in Lift for 2019-2025 Ram 2500 / 3500 4x4

One of the most important components to be included in our systems, Carli's Radius Arm Drops maintain your vehicle's critical caster and coil geometry. Due to their unique design, the vehicle chassis and powertrain can be serviced or replaced without removal of the Radius Arm Drops. Constructed out of 1/4 in Cold Rolled Steel and CNC formed, these precision components rotate your axle back to OEM settings, locating your lower coil perch angles where they were intentionally designed; this also alleviates the coil bowing that is encountered when you lift the front and don't address the coil bow issue, something that will never be truly addressed with a "coil only" approach.

Key Features

• Maintains critical geometries with 2.5-4 in Front Lift
• Heavy-Duty Construction
• Bolt-On installation, no welding required
• Includes: CS-DCM-20-HK – 4 Extended Crossmember Bolts

Fits These Vehicles

• Fits 2019-2025 Ram 2500
• Fits 2019-2025 Ram 3500

Confirm the model year, the trim and the part number against your vehicle before ordering.

4x4 / 4WD models only.

Carli Suspension warrants the products it manufactures against defects in workmanship and materials for the original purchaser with a limited lifetime warranty. Wear items such as bushings, heim joints, uniballs, airbags and limit straps are excluded, as are rust and corrosion. Alterations, modifications, improper installation, and the costs of removal, installation, freight and consequential damage are not covered.

What's Included

• Extended Transmission Crossmember Hardware (CS-DCM-20-HK)
• Radius Arm Drop Brackets 3.25 in Lift (CS-DRAD-14)

Specifications

• Brand: Carli Suspension
• Manufacturer Part Number: CS-DRAD-1419
• Type: Radius Arm Drop Bracket
• Manufacturer Warranty: Limited Lifetime (original purchaser)
• Condition: New

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
