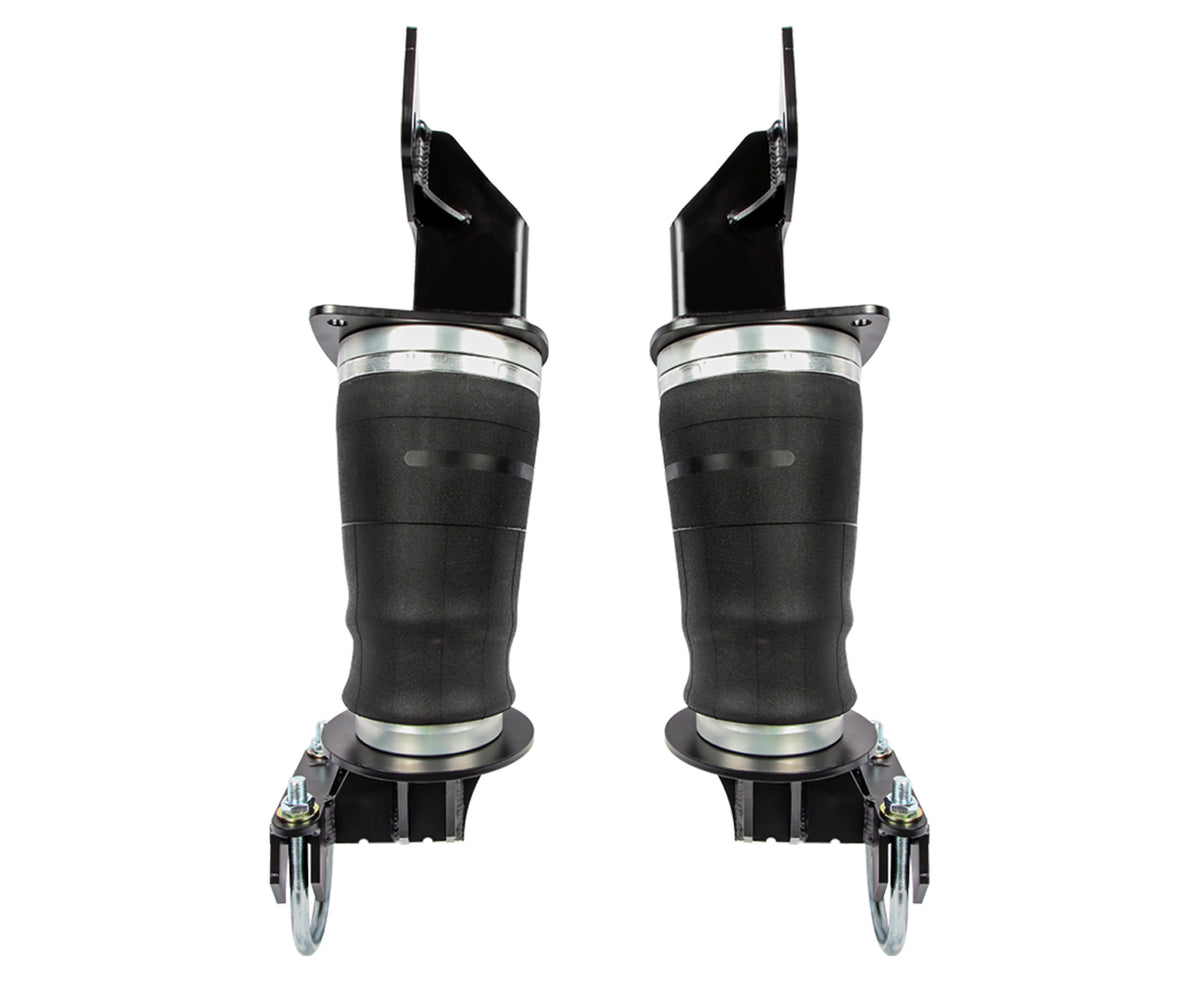

Carli Suspension CS-FLTB-17-40 Long Travel Airbags 4.0 in Axle Tube for 2017-2022 Ford F-350 Super Duty 4x4

4.0 in Axle Tube should be confirmed prior to ordering. Our airbags work with up to 12 in of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated at 2,000lbs each (up to 4,000lbs of capacity at 100 psi) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling. These were designed to work in conjunction with our Full Progressive Leaf Springs to regain the lost payload capacity and create an adjustable solution for varying loads. These will work with add-a-packs as well but the factory bump-stop tang will need to be cut off the factory block. We recommend 2 in of lift in the rear over trucks with 3 in factory blocks.

Key Features

• Supports up to 12 inches of travel
• Compatible with Carli 4.5 in-5.5 in Suspension Systems ONLY
• Restore Factory Payload to Full Progressive Springs
• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
• Use Manually (included) or with onboard air System (1/4 in airline compatible)

Fits These Vehicles

• Fits 2017-2022 Ford F-350 Super Duty

Confirm the model year, the trim and the part number against your vehicle before ordering.

4x4 / 4WD models only.

Single rear wheel (SRW) models.

Confirm your rear axle tube diameter before ordering.

What's Included

• Long Travel Air Bag Axle Bracket (4.5 in Lift, 4.0 in Axle) (CS-FLTB-17-BTM-40)
• Long Travel Airbags Upper Frame Brackets & Hardware (CS-FLTB-17-UPR)

Specifications

• Brand: Carli Suspension
• Manufacturer Part Number: CS-FLTB-17-40
• Type: Air Spring Kit
• Condition: New

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
