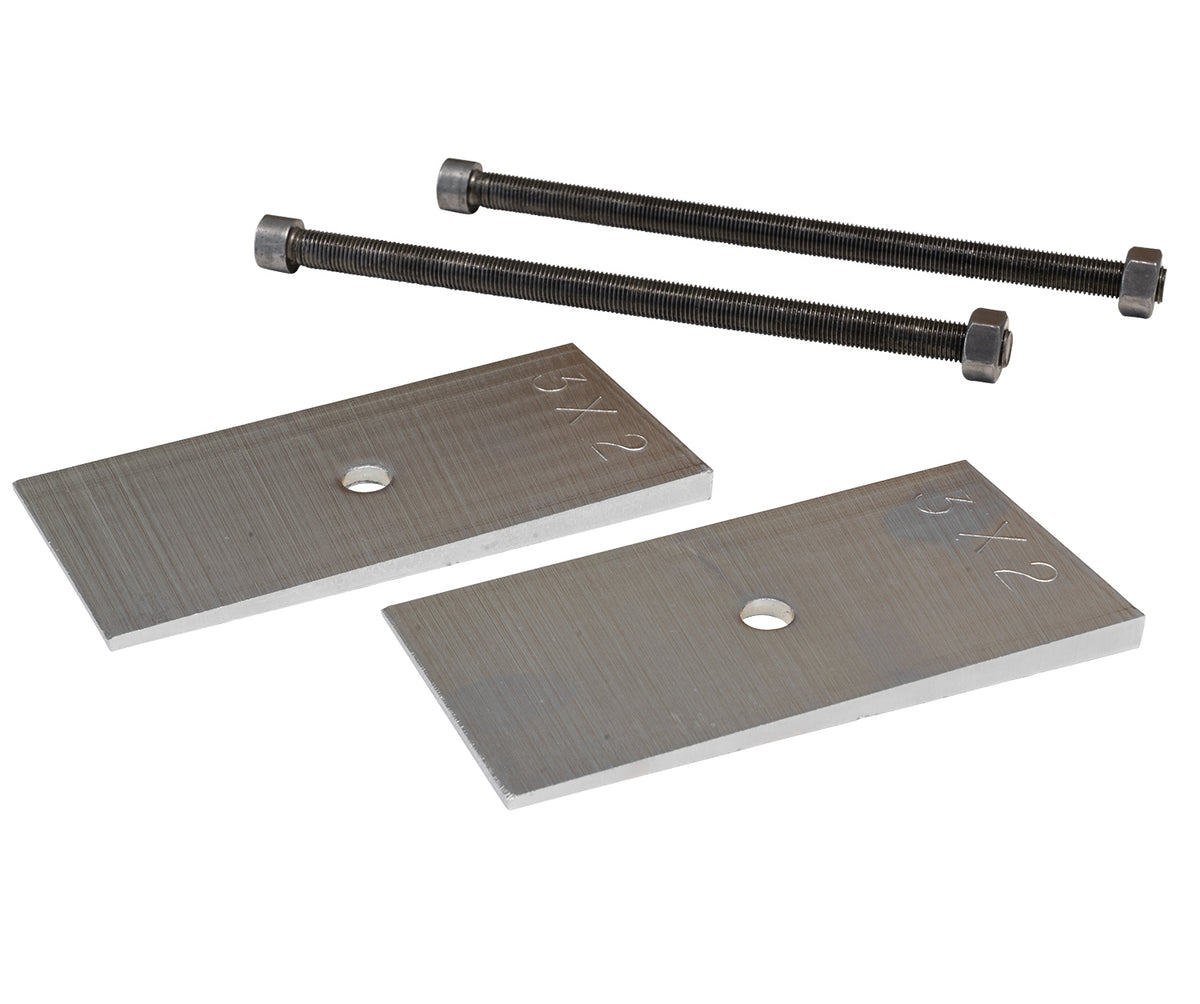

Carli Suspension CS-FPSKIT-3X2 Pinion Shim 2 Degree for 2005-2026 Ford F-250 / F-350 Super Duty 4x4

We've had a few customers report a driveline vibration around 70mph when under power from the rear driveline. All have provided specs withing the 1°-3° range. We brought an affected vehicle into the shop and installed these 2° pinion shims which alleviated the issue. The end pinion measurement on the two tested vehicles was 4° and 5°; both were perfectly smooth under power at all speeds. This caused us to toss the accepted 1°-3° spec out the window accepting the higher figure for lifted applications; after all, you can't argue with results!

Key Features

• 2° Pinion Shim Kit
• Includes new Center Pin

Fits These Vehicles

• Fits 2005-2026 Ford F-250 Super Duty
• Fits 2005-2026 Ford F-350 Super Duty

Confirm the model year, the trim and the part number against your vehicle before ordering.

4x4 / 4WD models only.

Carli Suspension warrants the products it manufactures against defects in workmanship and materials for the original purchaser with a limited lifetime warranty. Wear items such as bushings, heim joints, uniballs, airbags and limit straps are excluded, as are rust and corrosion. Alterations, modifications, improper installation, and the costs of removal, installation, freight and consequential damage are not covered.

Specifications

• Brand: Carli Suspension
• Manufacturer Part Number: CS-FPSKIT-3X2
• Type: Pinion Shim
• Manufacturer Warranty: Limited Lifetime (original purchaser)
• Condition: New

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
