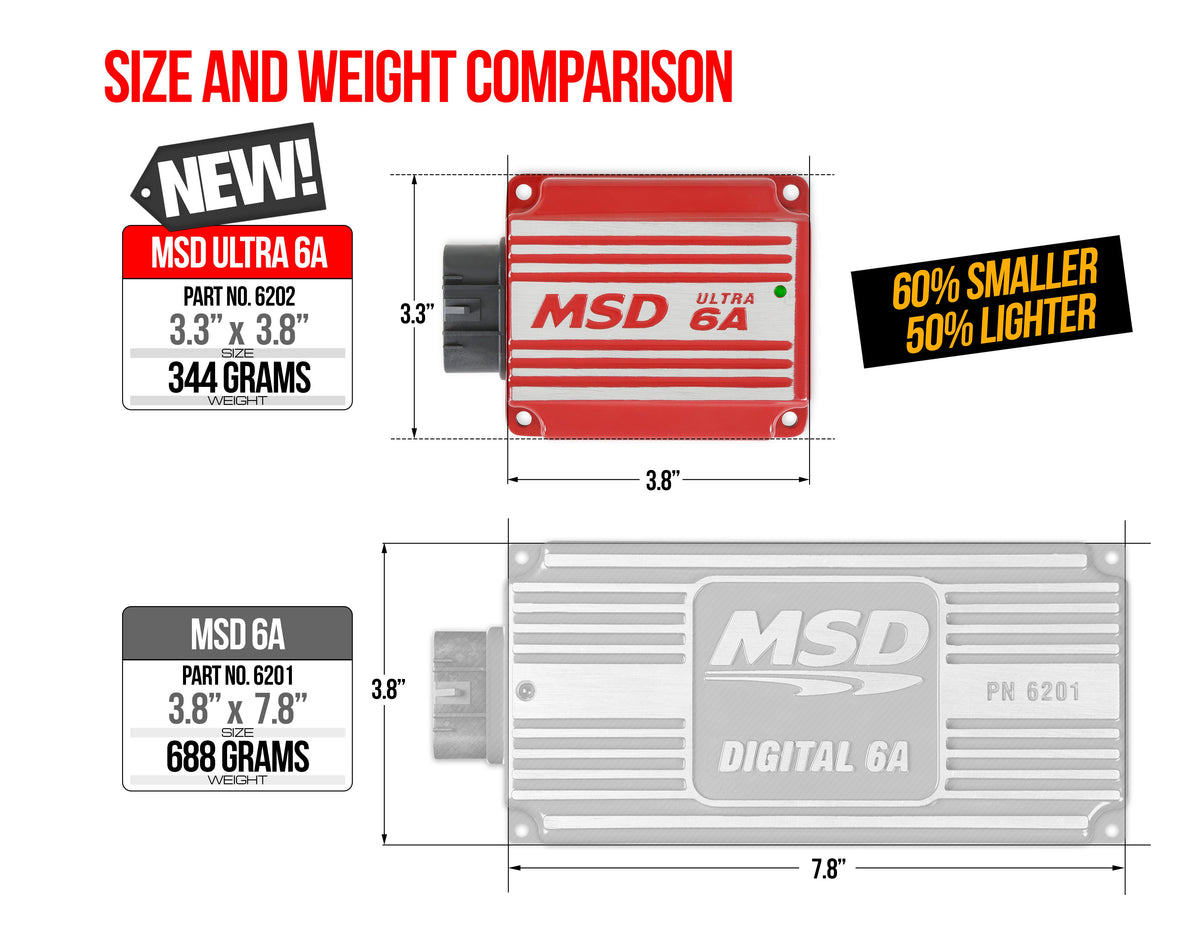

MSD 6202 Ultra 6A Ignition Control - Red

Genuine MSD part.

The Ultra 6A Series feature a capacitive discharge ignition design. The majority of stock ignition systems are inductive ignitions. In an inductive ignition, the coil must store and step up the voltage to maximum strength in between each firing. At higher rpm, since there is less time to charge the coil to full capacity, the voltage falls short of reaching maximum energy which results in a loss of power or top end miss.

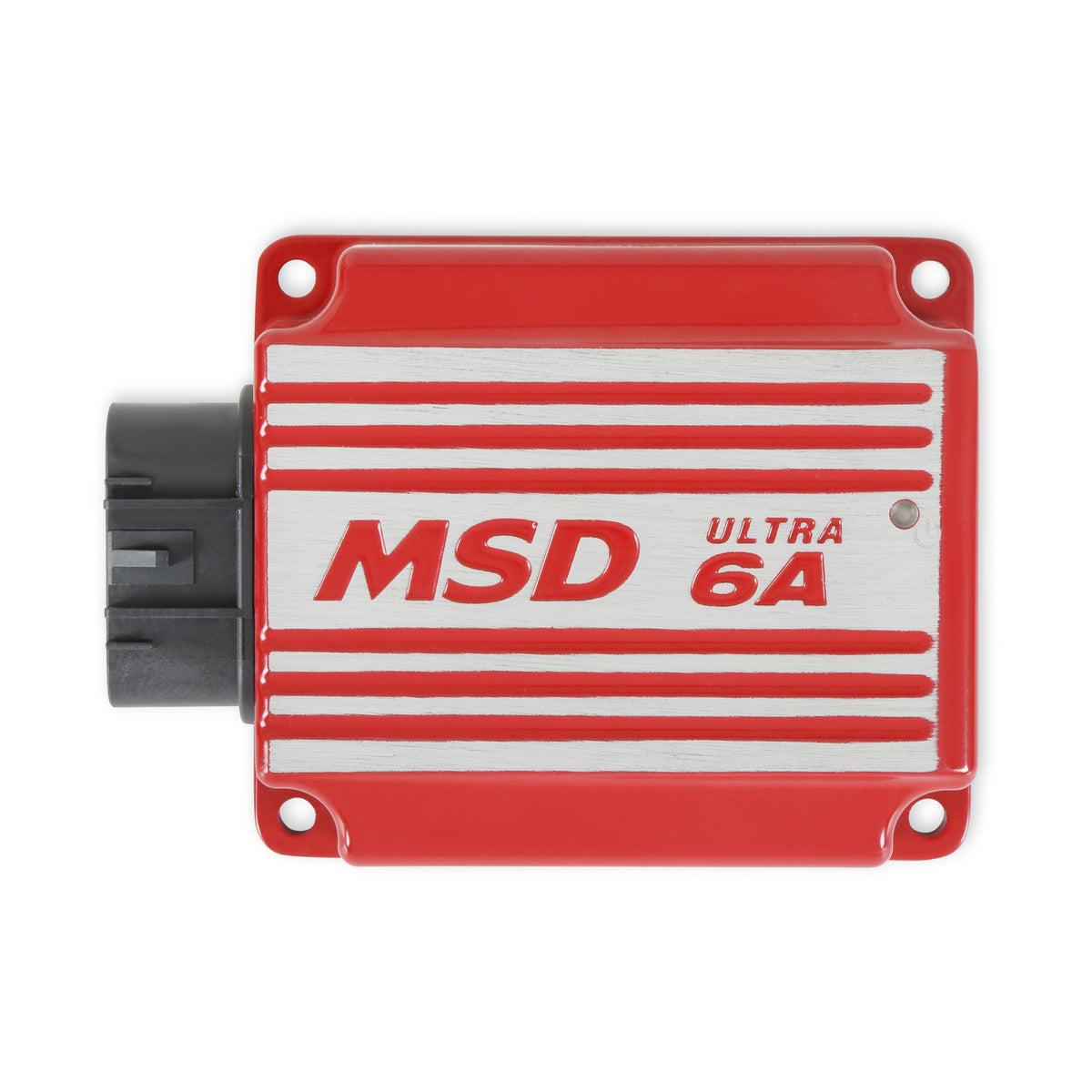

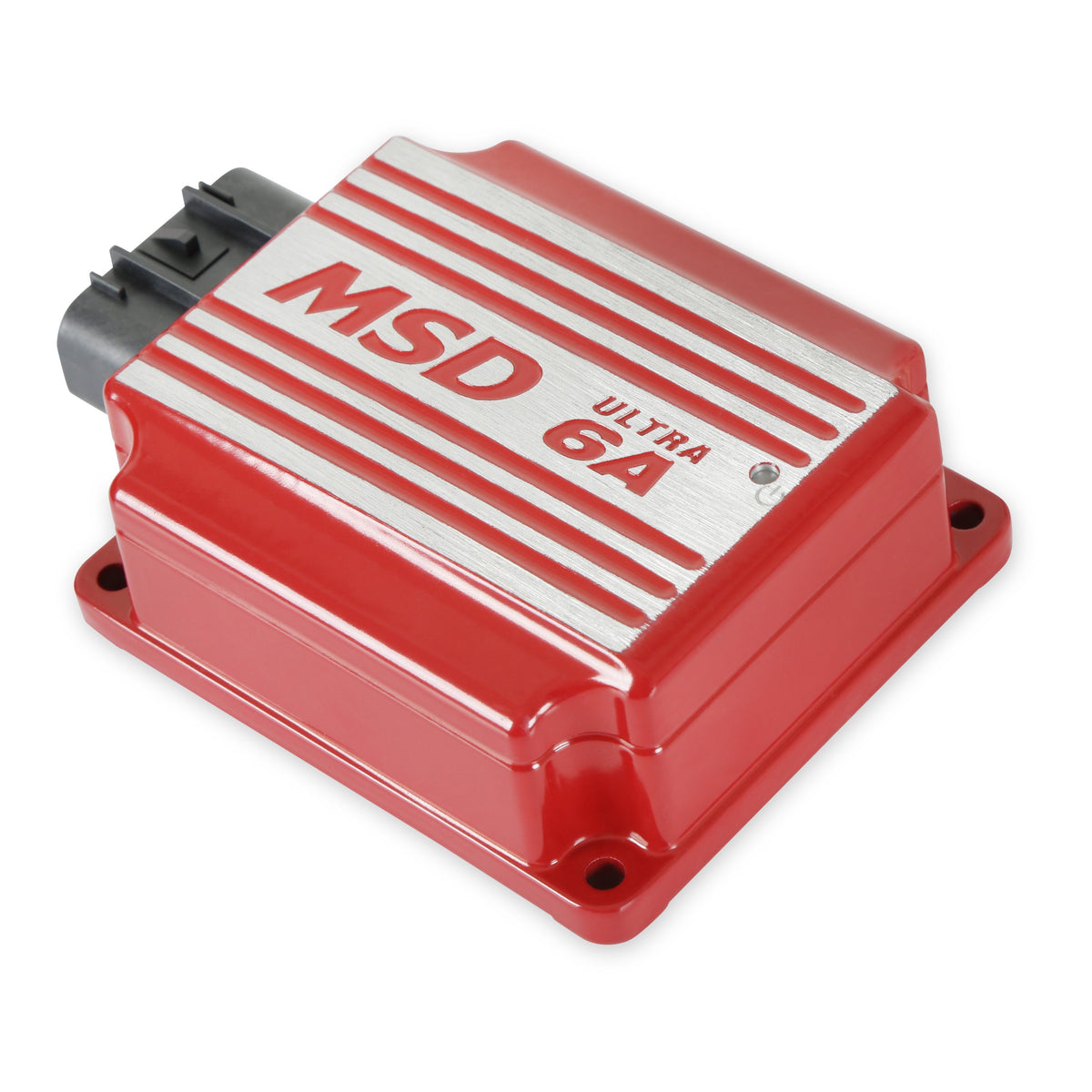

MSD ignition control box, part number 6202, supplied new.

Key Features

• 12-15 Volts, 7 Volt Start
• 1.1 Amp per 1,000 RPM
• Powerful capacitive discharge of multiple sparks improves performance, and ensure complete combustion
• Plug and Play upgrade to current installations with a 6201, MSD 6A
• New processor and board design provide a highly efficient ignition, minimal heat and max spark energy with less current draw
• Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline rpm

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 6202
• Item Type: Electrical
• Color: Red

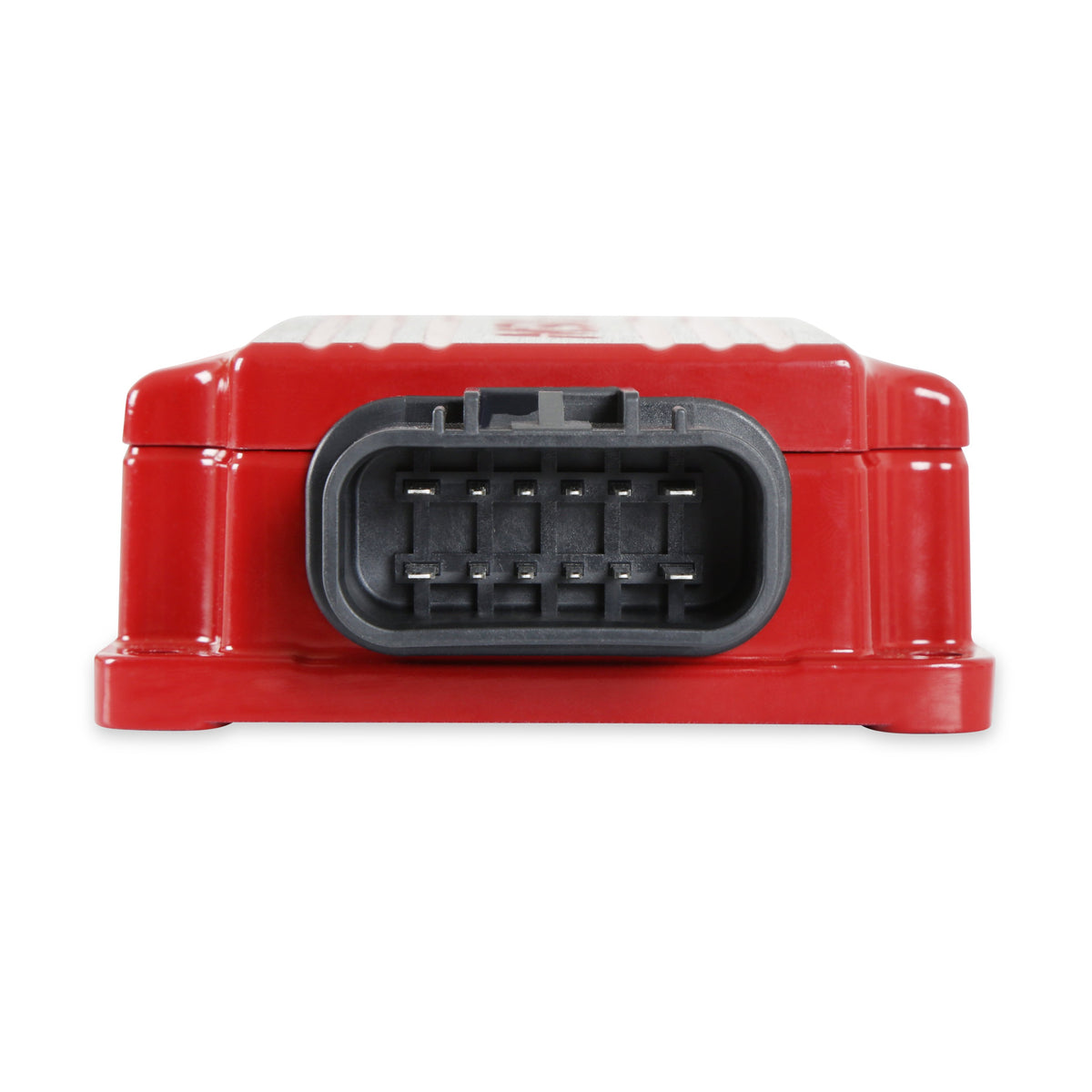

• Connector Gender: Female
• Connector Quantity: 1
• Current Draw: 1000 RPM
• Grade Type: Performance
• Ignition Box Type: Ultra
• Ignition Type: Performance
• Maximum RPM: 15,000 RPM
• Mount Type: Surface Mount

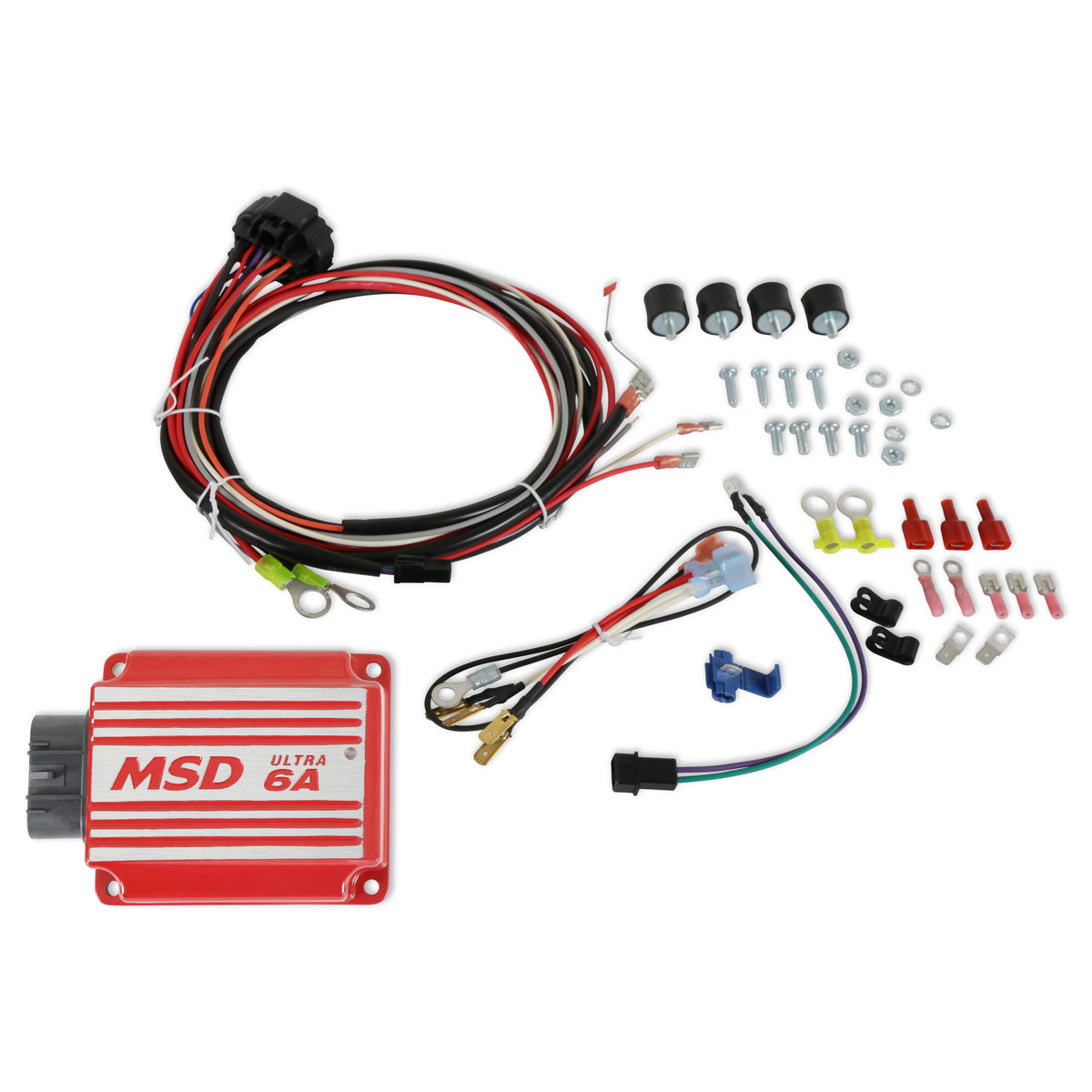

• Mounting Hardware Included: Yes
• Primary Voltage: 520-540
• Product Type: Digital 6A Ignition Control Box
• Rev Limiter: No
• Rotary Dials: No
• Secondary Voltage: 45,000
• Spark Energy (mJ per spark): 135 - 150
• Sub Category: Control Modules
• Terminal Gender: Male
• Terminal Quantity: 12
• Voltage Required: 12-15
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 2.3 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
