MSD 64233 Ultra 6AL Ignition Control - Black

Genuine MSD part.

The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RP

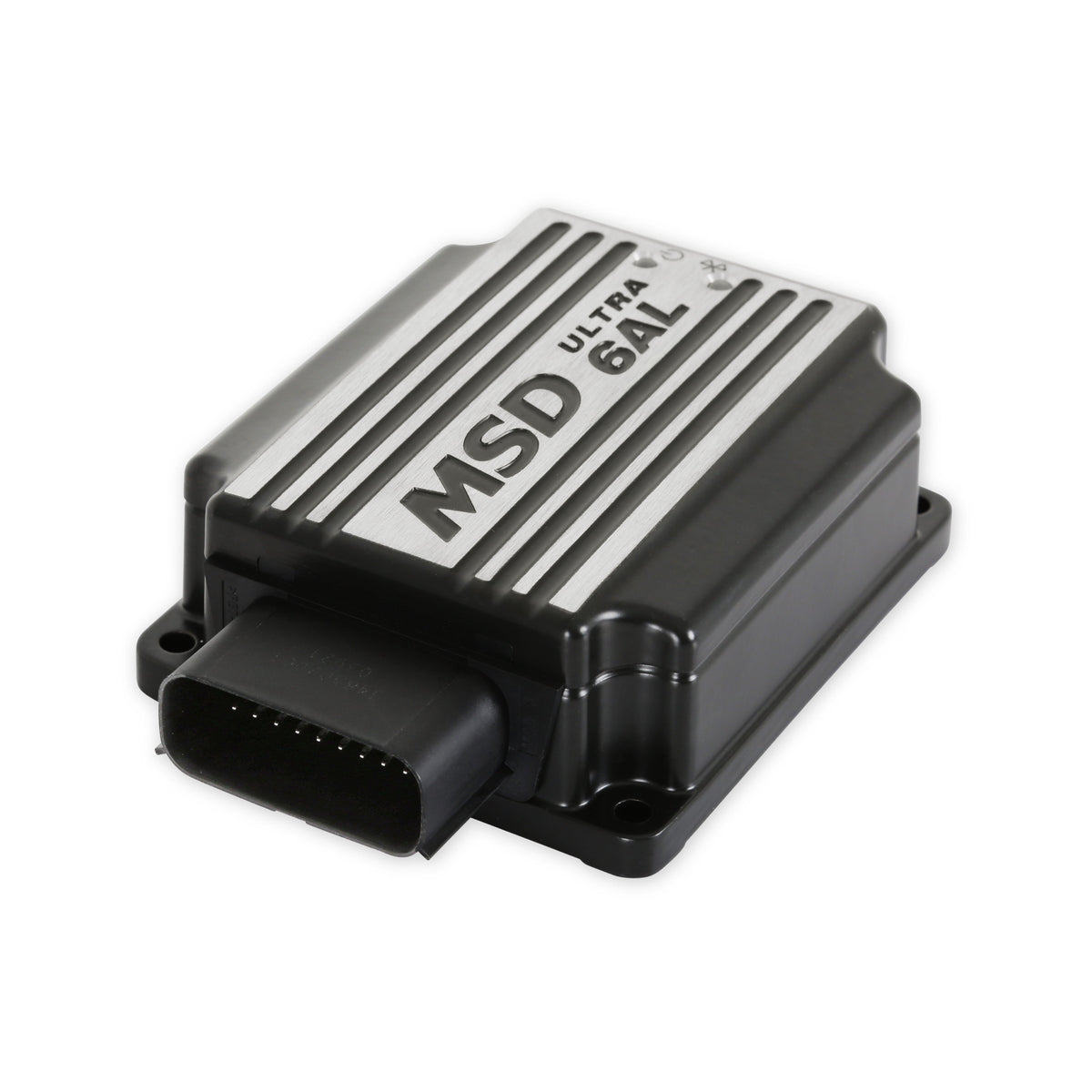

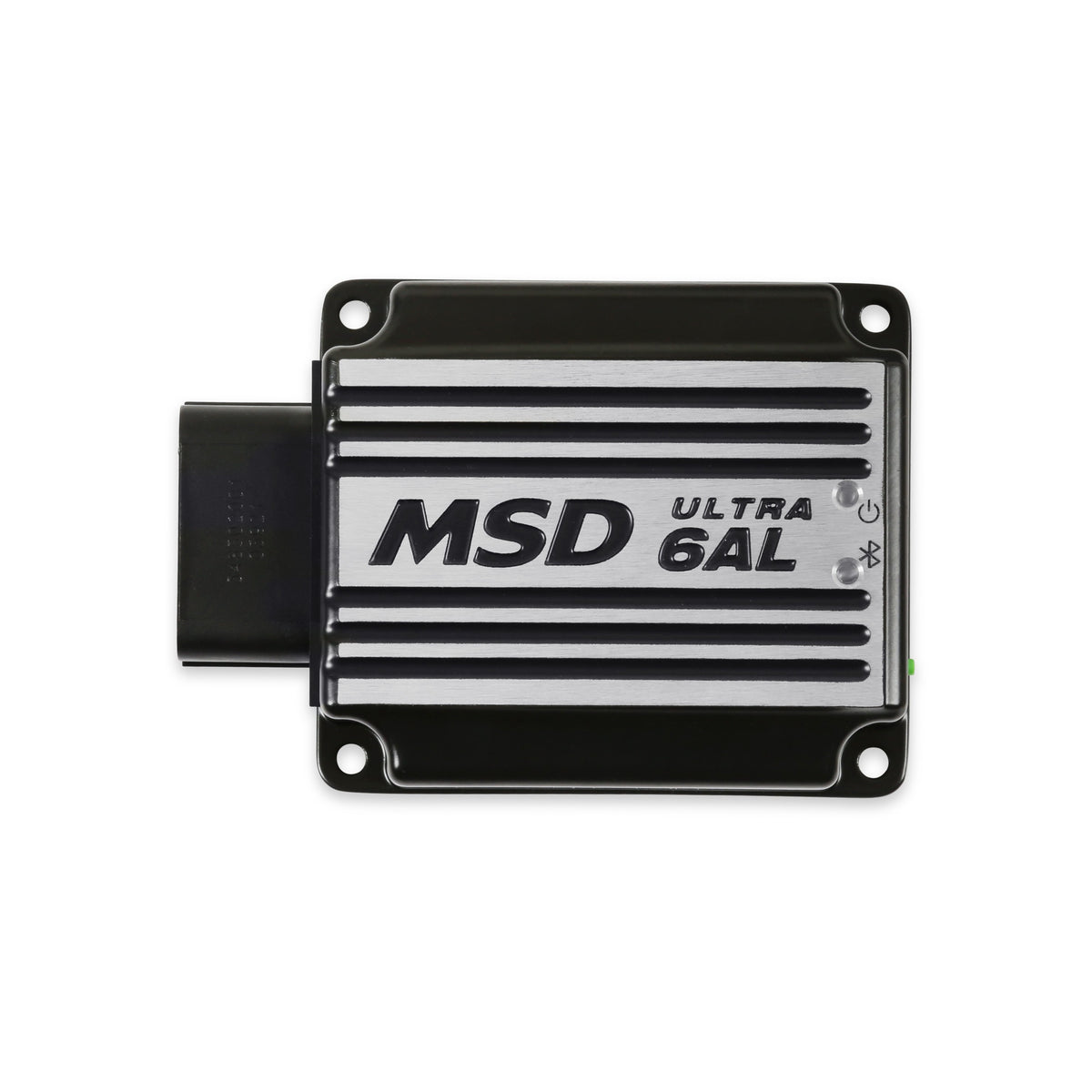

MSD ignition control box, part number 64233, supplied new.

Key Features

• Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
• 12-15 Volts, 7 Volt Start
• Operates on most 7 to 28 volt electrical systems
• High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
• Fully protected against an open coil, shorted coil & open load
• Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 64233
• Item Type: Electrical
• Color: Black
• Connector Gender: Female
• Connector Quantity: 1
• Current Draw: 1000 RPM
• Grade Type: Performance
• Ignition Box Type: Ultra
• Ignition Type: Performance
• Maximum RPM: 15,000 RPM
• Mount Type: Surface Mount

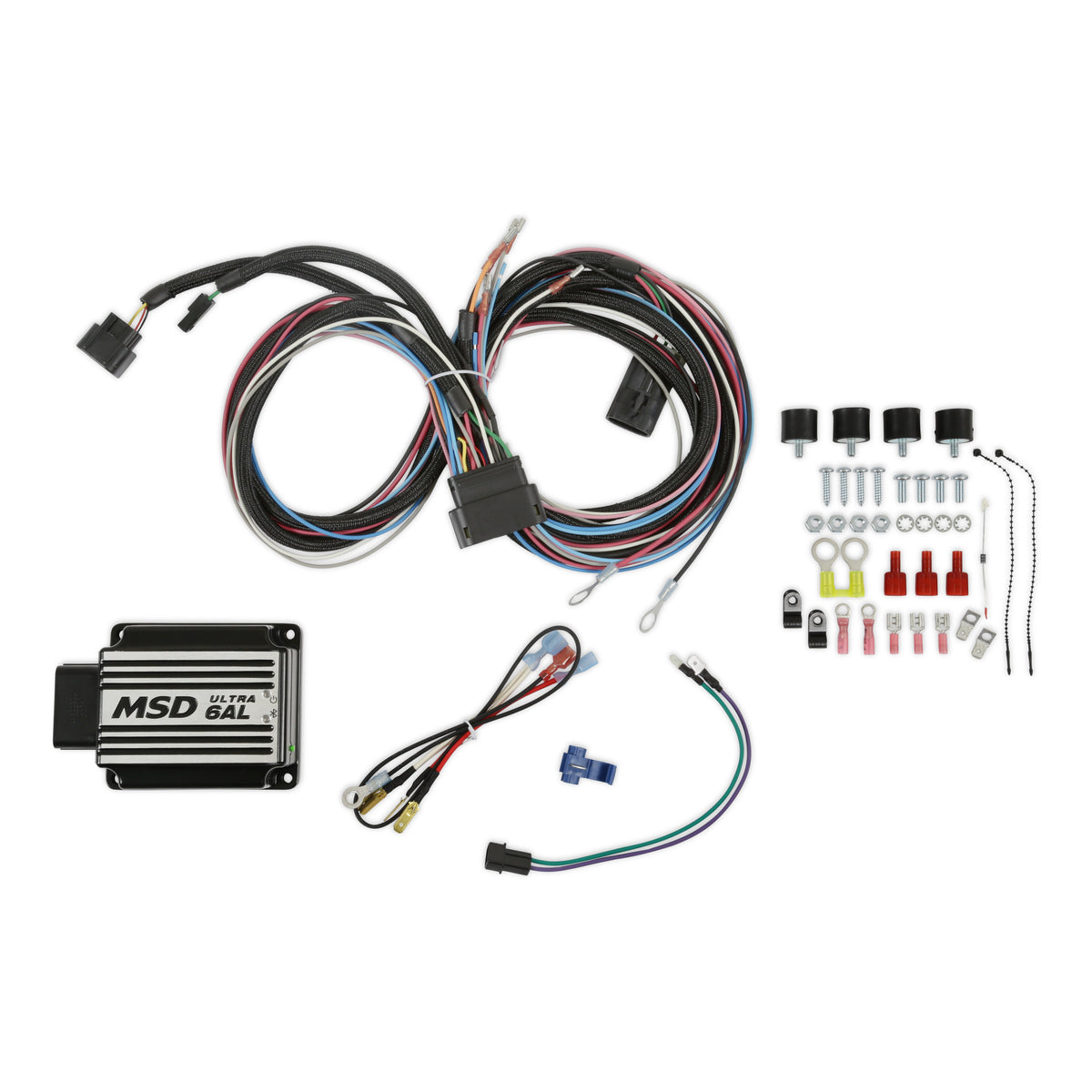

• Mounting Hardware Included: Yes
• Primary Voltage: 520-540
• Product Type: Digital 6AL Ignition Control Box w/Rev Control
• Rev Limiter: Yes
• Rotary Dials: No
• Secondary Voltage: 45,000
• Spark Energy (mJ per spark): 135 - 150
• Sub Category: Control Modules
• Terminal Gender: Male

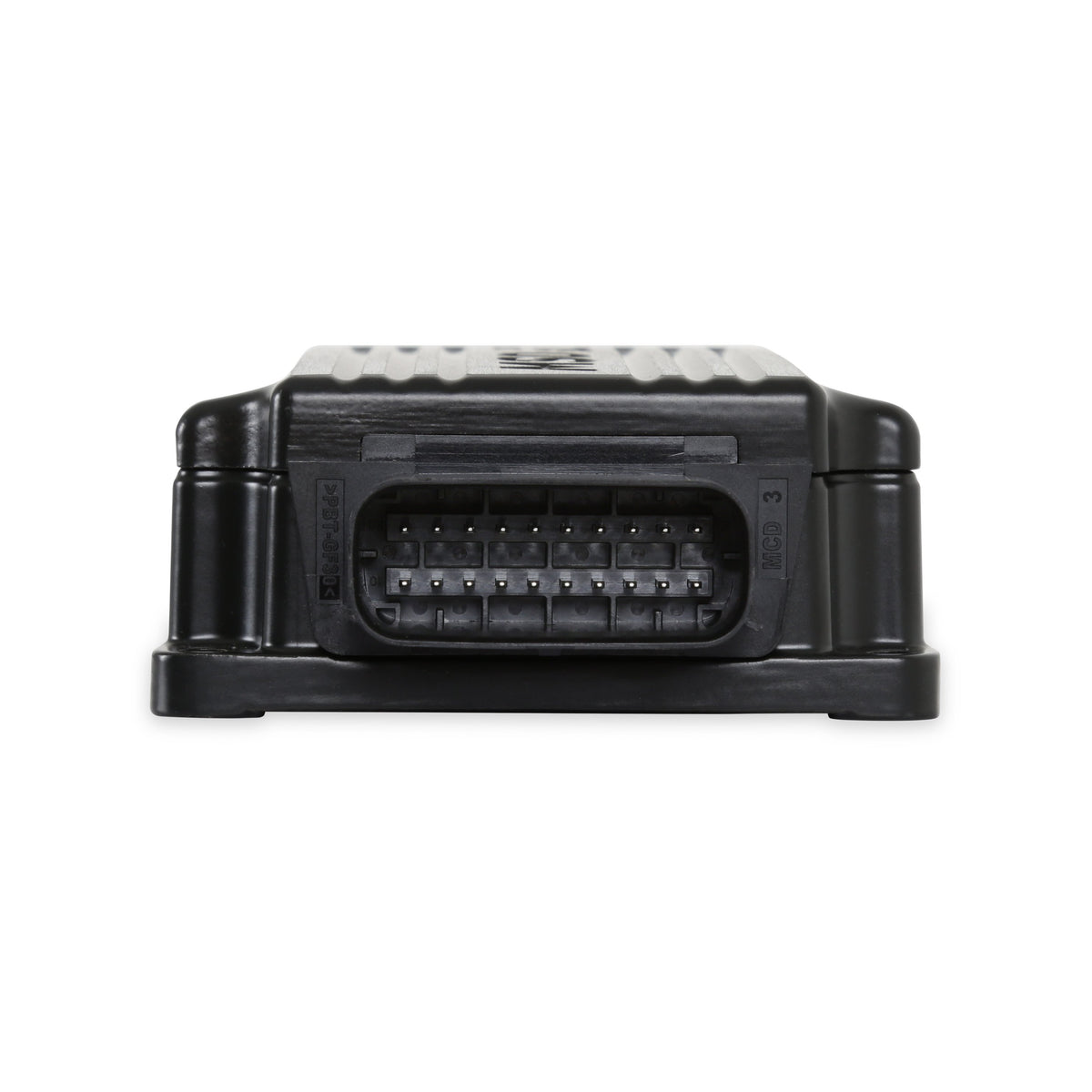

• Terminal Quantity: 20
• Voltage Required: 12-15
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 2.6 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
