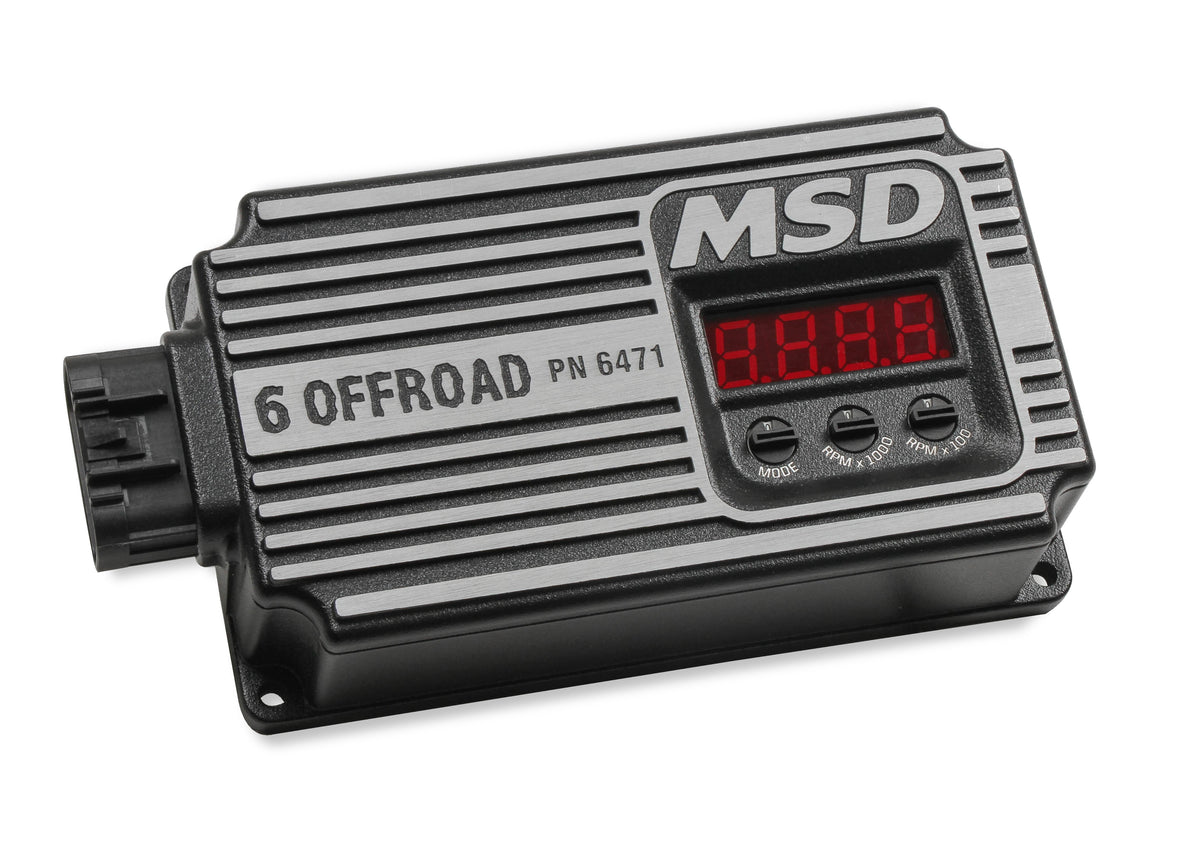

MSD 6471 Digital 6 Offroad Ignition

Genuine MSD part.

The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

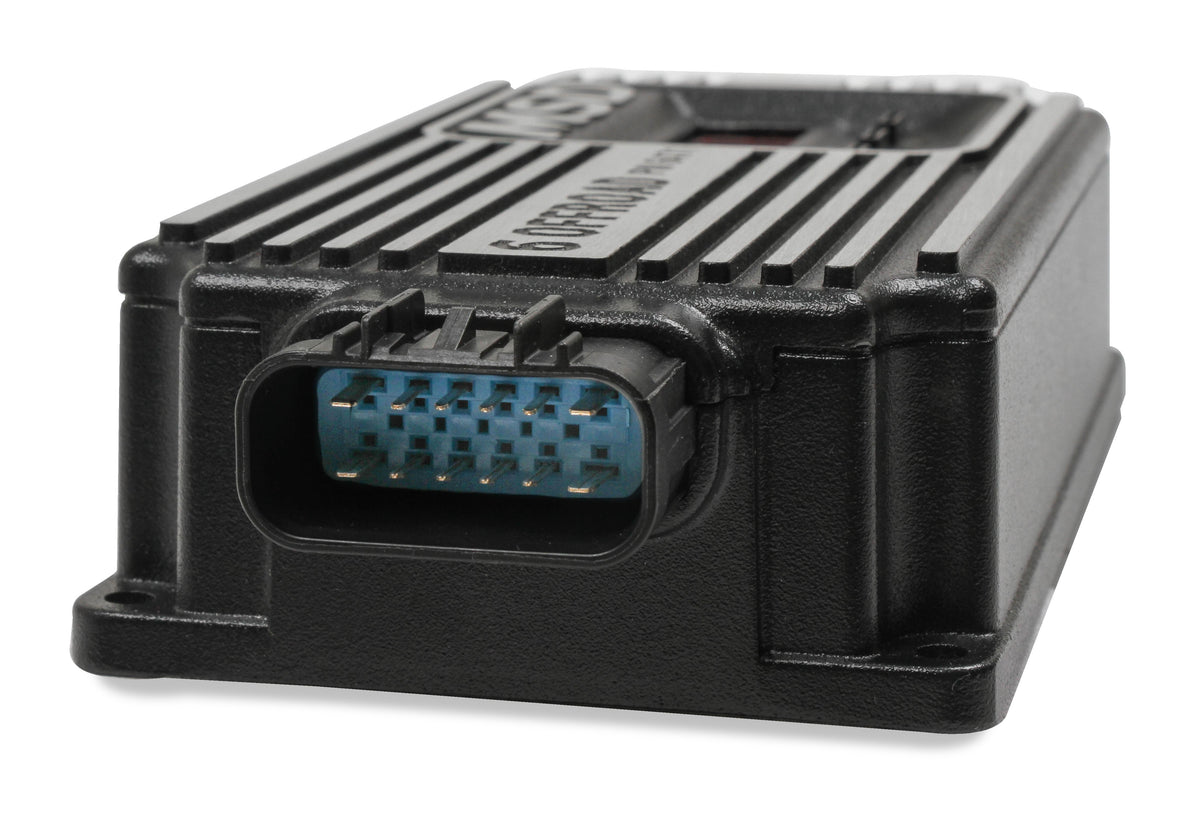

MSD ignition control box, part number 6471, supplied new.

Key Features

• Rugged housing to stand up to demanding offroad and race conditions
• 0.8 Amps per 1,000 RPM

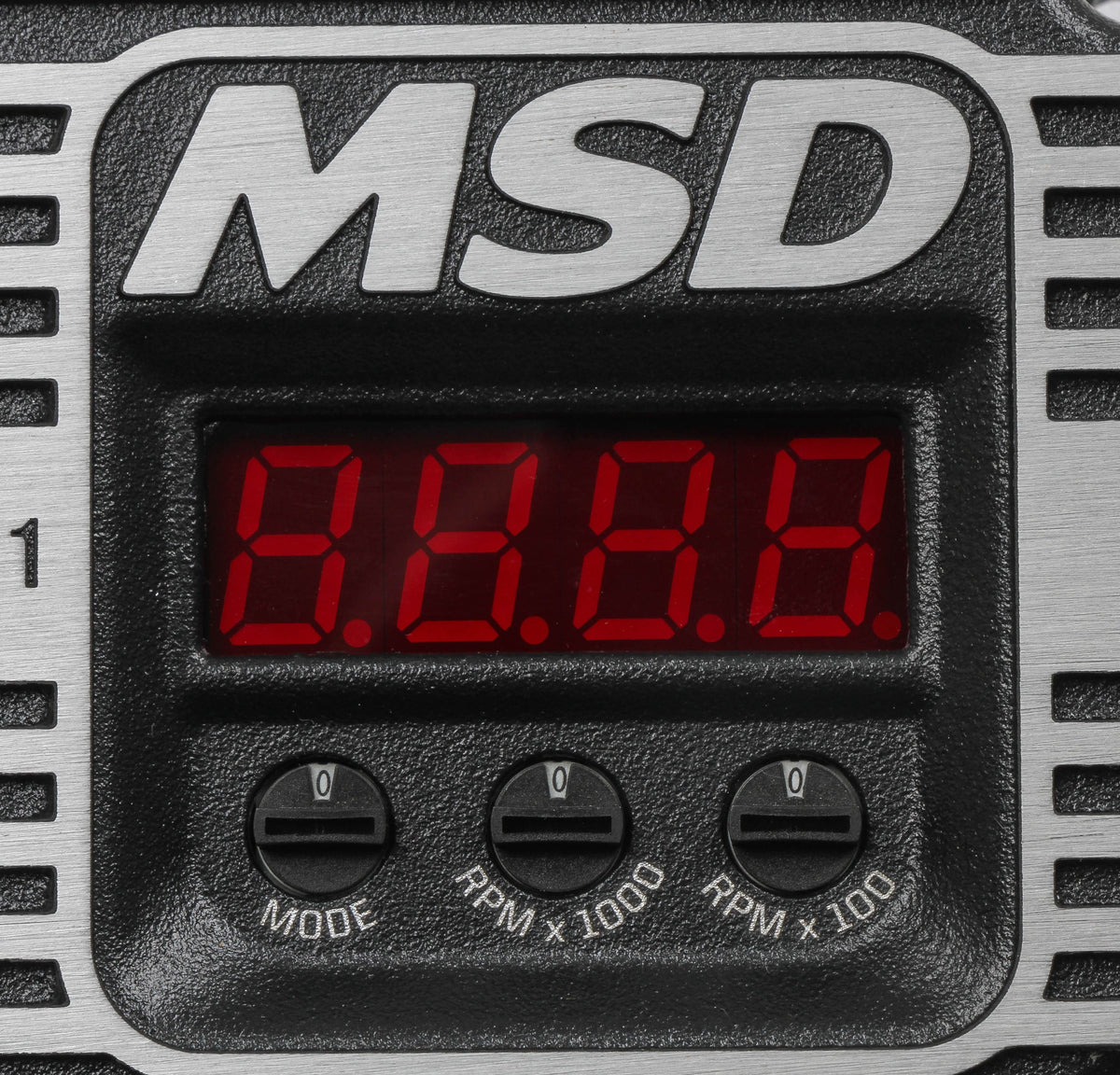

• Large, easy to read LED display
• Fully potted design provides reliability even in high vibration and wet circumstances
• Full delivery of spark energy down to 6 volts battery supply
• Single plug-in connector for clean wiring

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 6471
• Item Type: Electrical
• Color: Black
• Connector Gender: Female
• Connector Quantity: 1
• Current Draw: 1000 RPM
• Grade Type: Performance
• Ignition Type: Performance
• Maximum RPM: 12,000 RPM
• Mount Type: Surface Mount

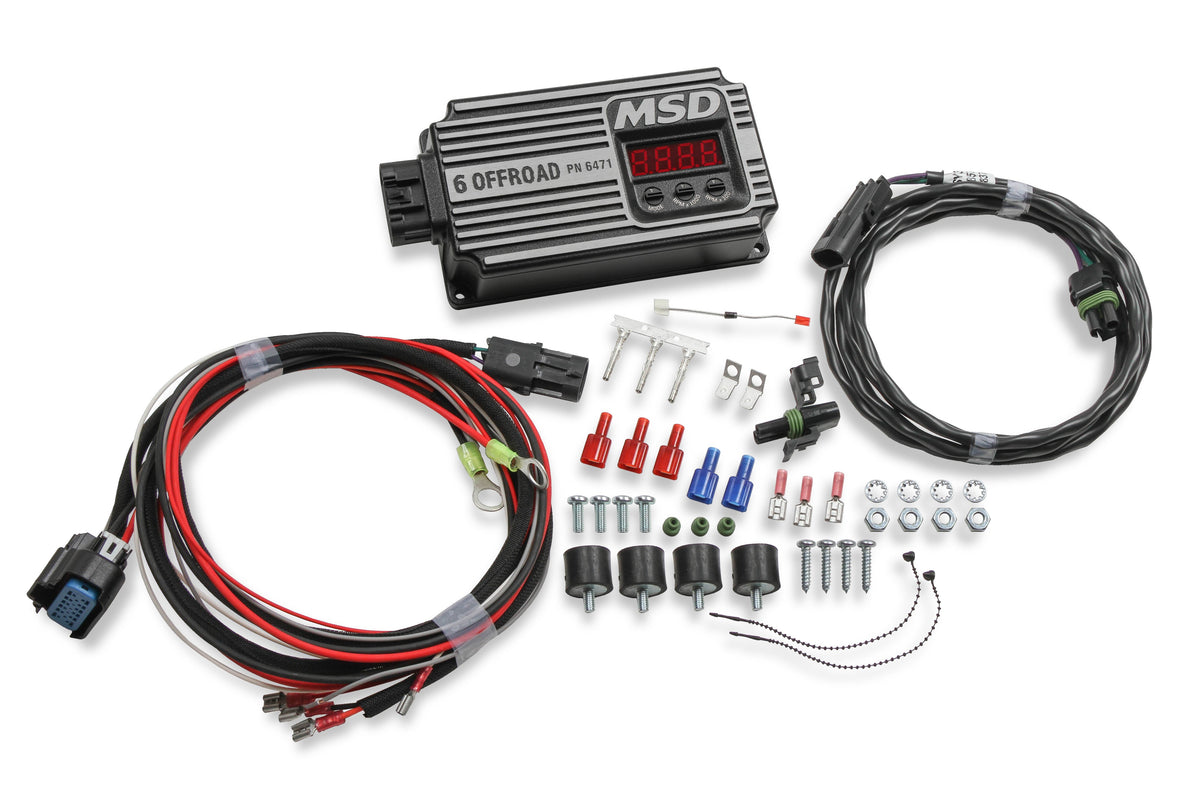

• Mounting Hardware Included: Yes
• Primary Voltage: 535-550
• Product Type: Digital 6 Offroad Ignition Box
• Secondary Voltage: 45,000
• Spark Energy (mJ per spark): 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250
• Sub Category: Control Modules
• Terminal Gender: Male
• Terminal Quantity: 12
• Voltage Required: 6-18
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 4.0 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
