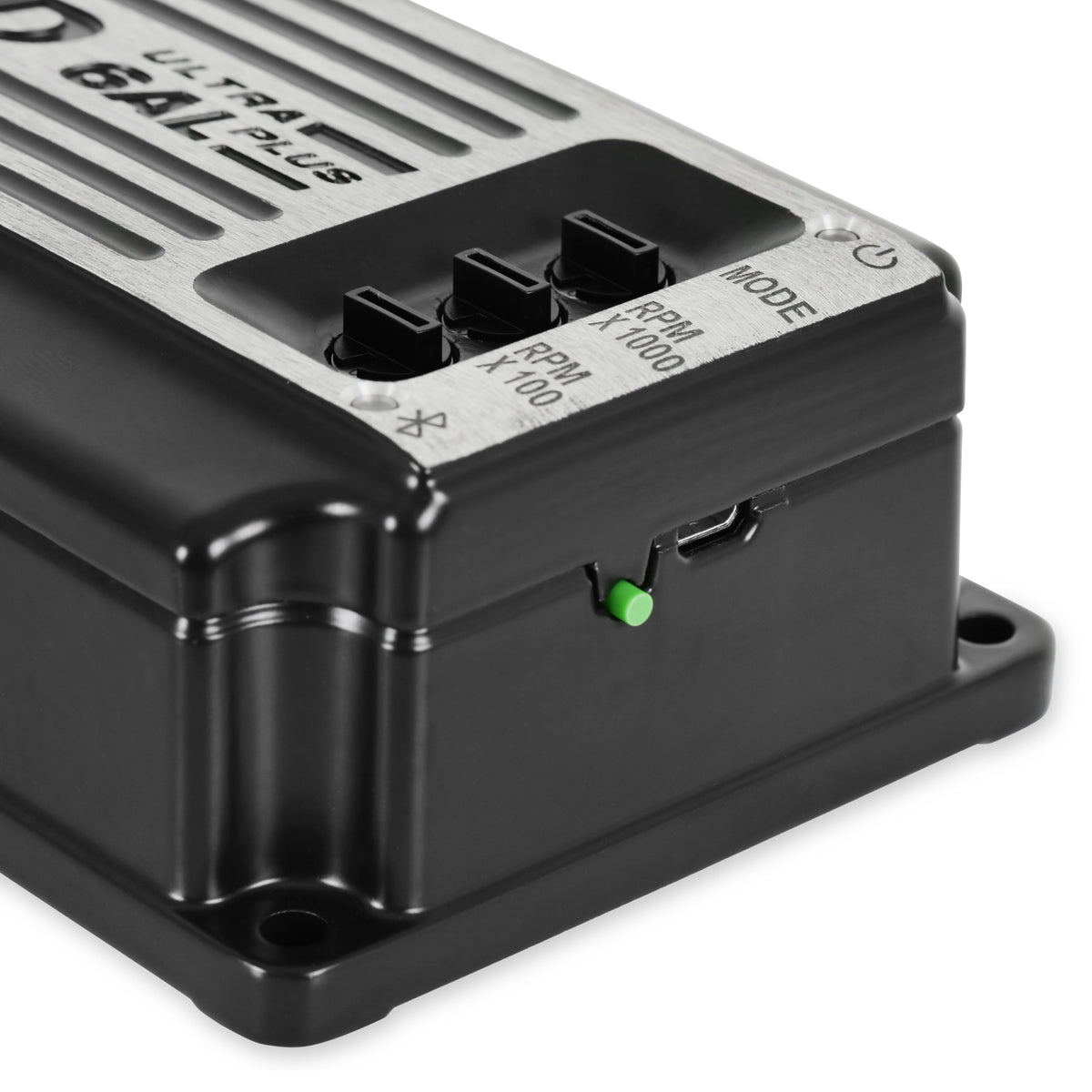

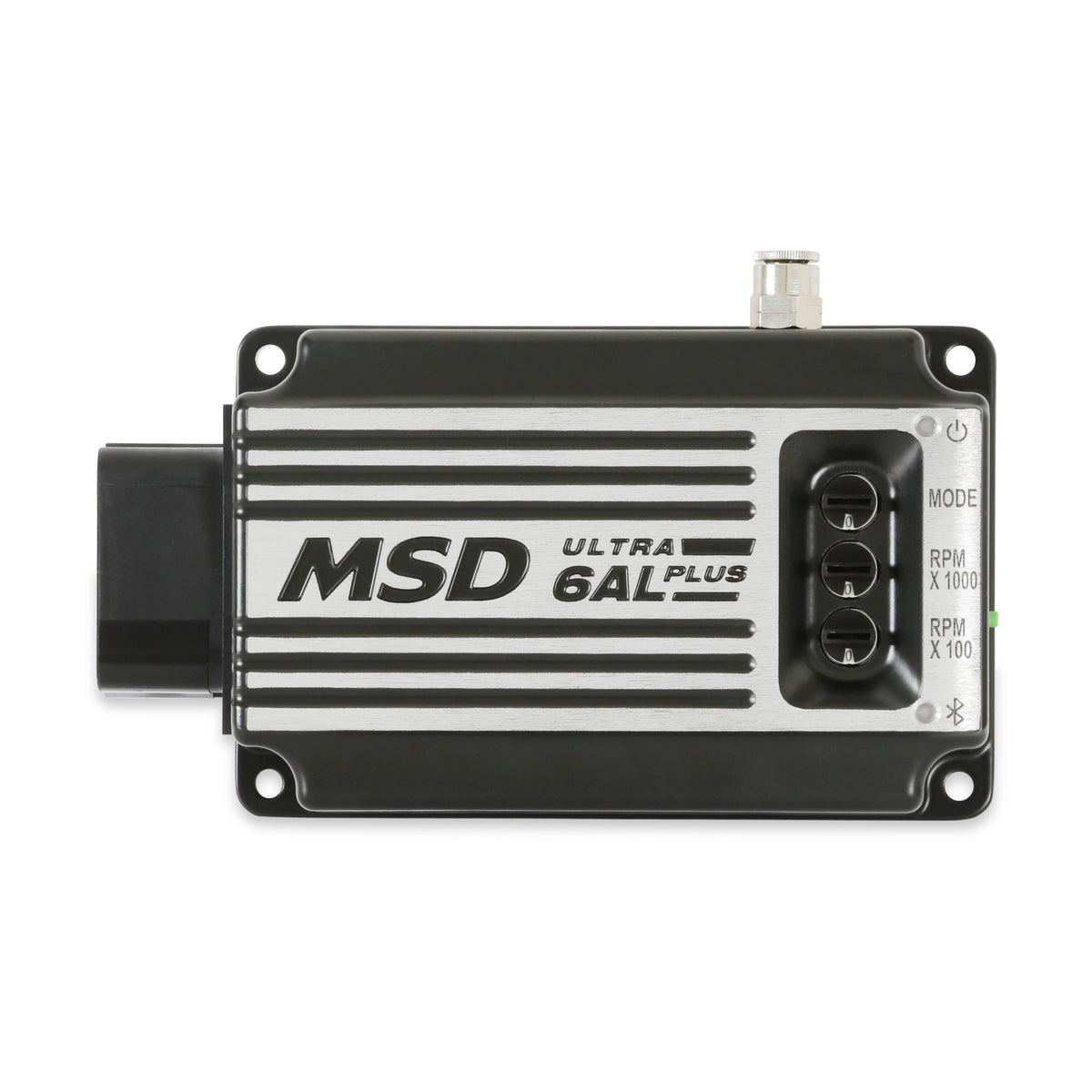

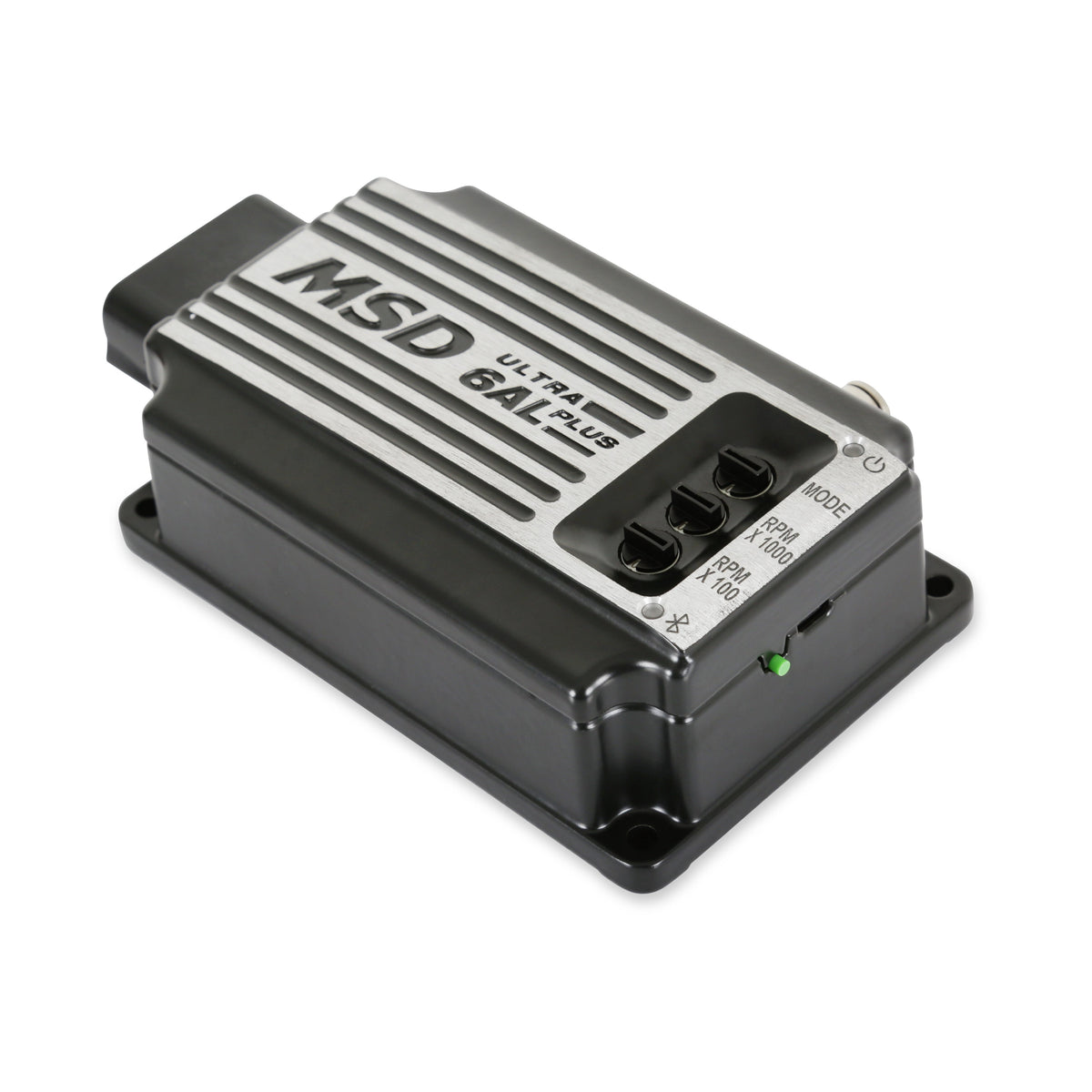

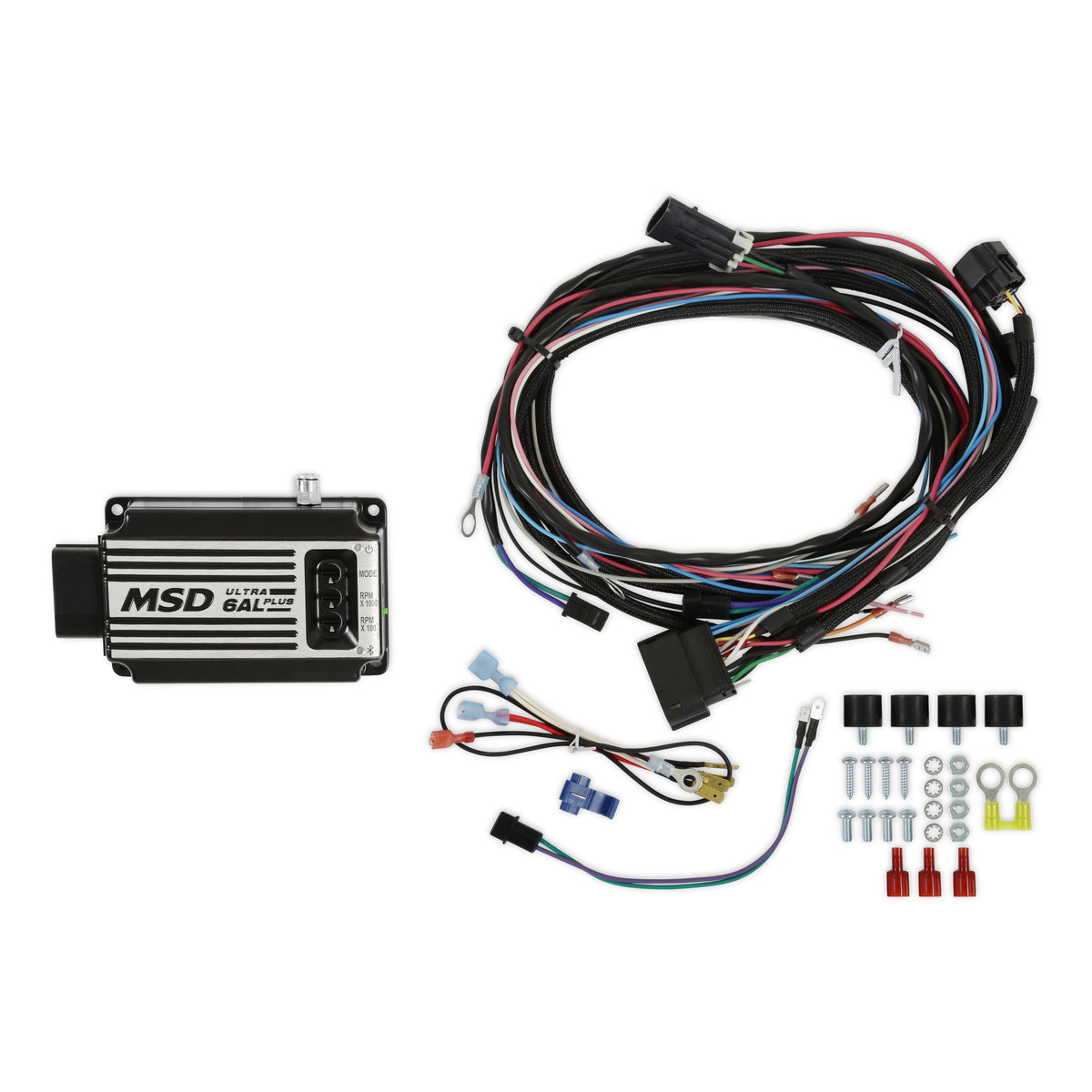

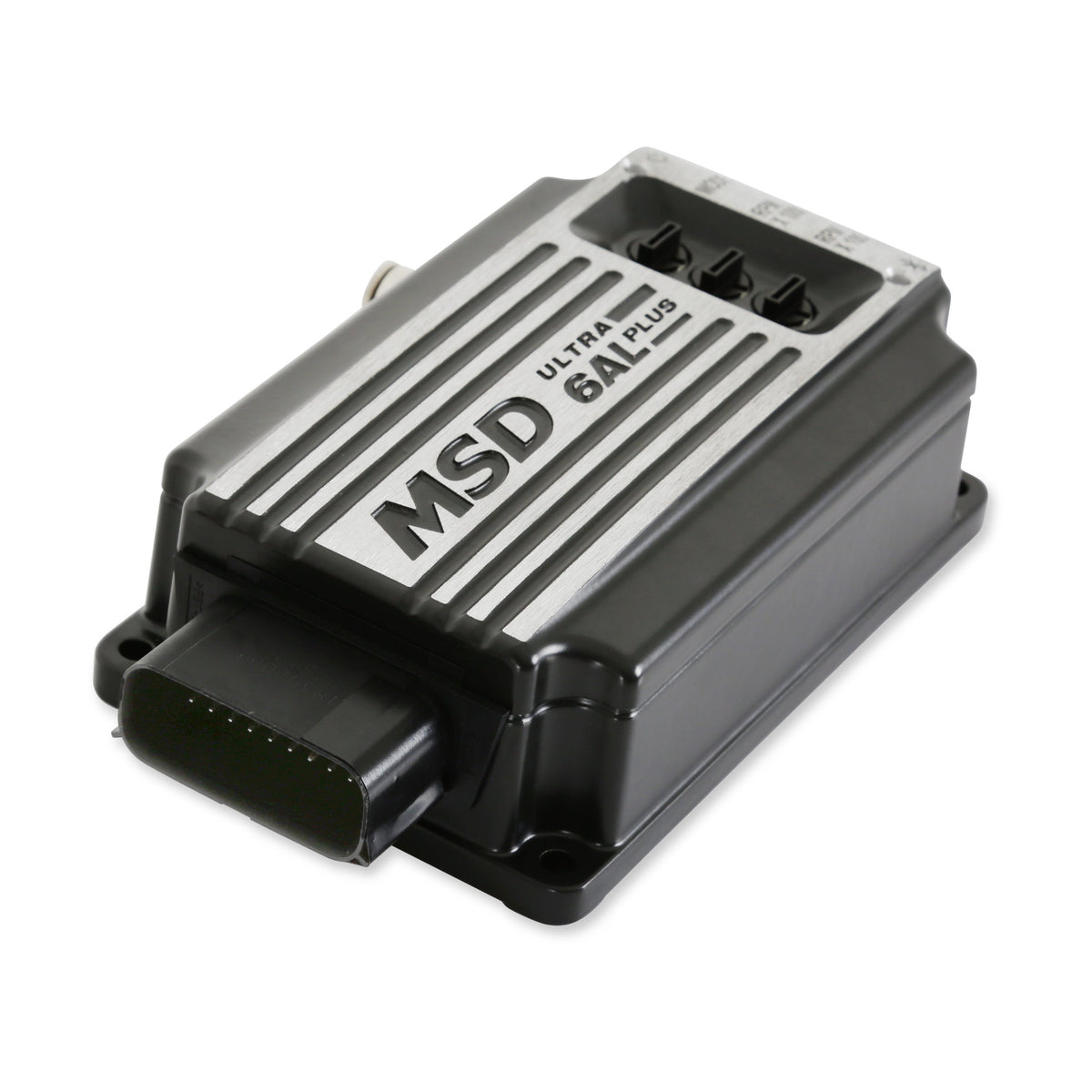

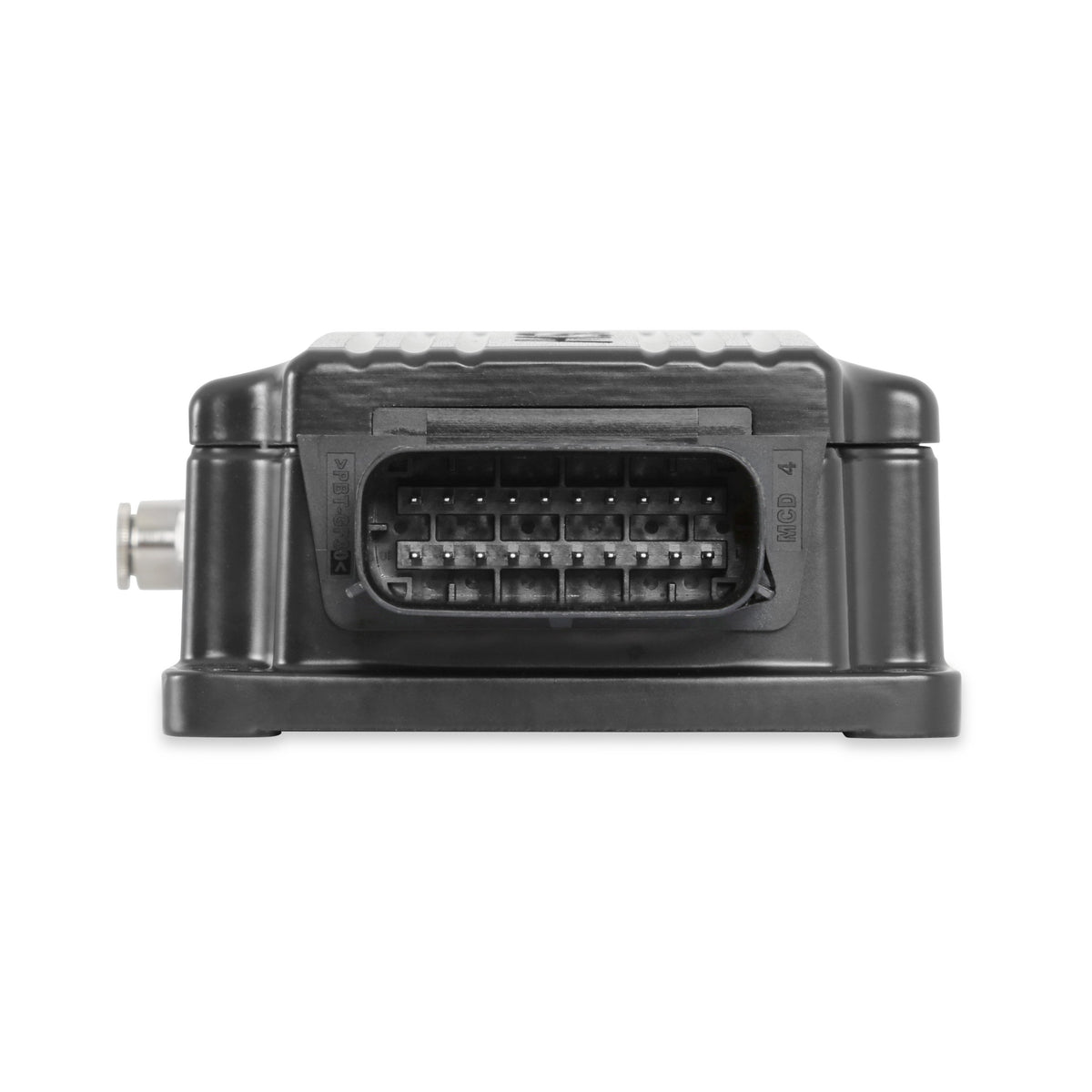

MSD 65233 Ultra 6AL Plus Ignition Control - Black

Genuine MSD part.

The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and

MSD ignition control box, part number 65233, supplied new.

Key Features

• Alerts and monitors available
• Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
• 15,000 RPM with 14.4 Volts
• Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
• Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)
• High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 65233
• Item Type: Electrical
• Color: Black

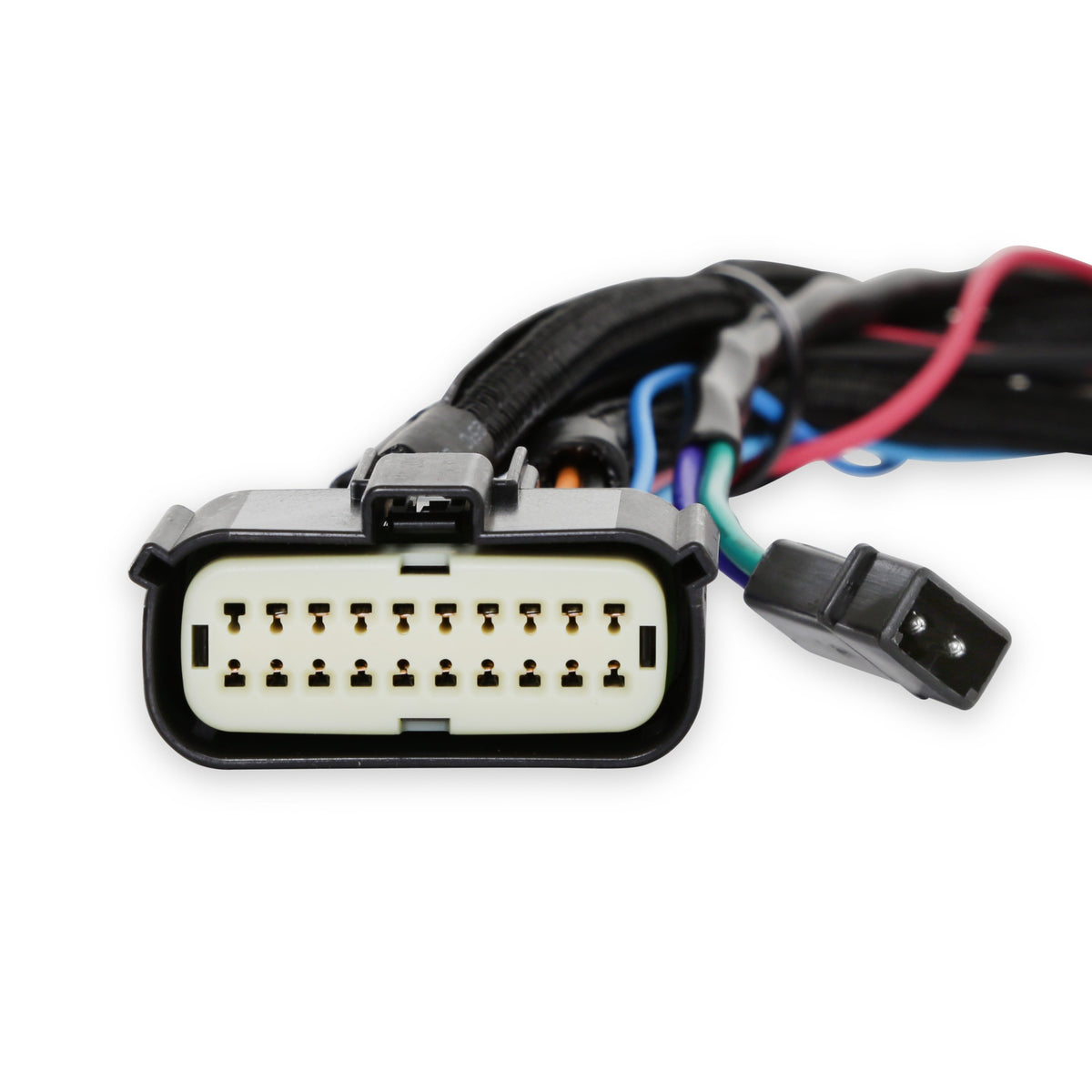

• Connector Gender: Female
• Connector Quantity: 1
• Current Draw: 1000 RPM
• Grade Type: Performance
• Ignition Box Type: Ultra Plus
• Ignition Type: Performance
• Maximum RPM: 15,000 RPM
• Mount Type: Surface Mount
• Mounting Hardware Included: Yes
• Primary Voltage: 520-540
• Product Type: Digital 6AL Ignition Control Box w/Rev Control
• Rev Limiter: Yes

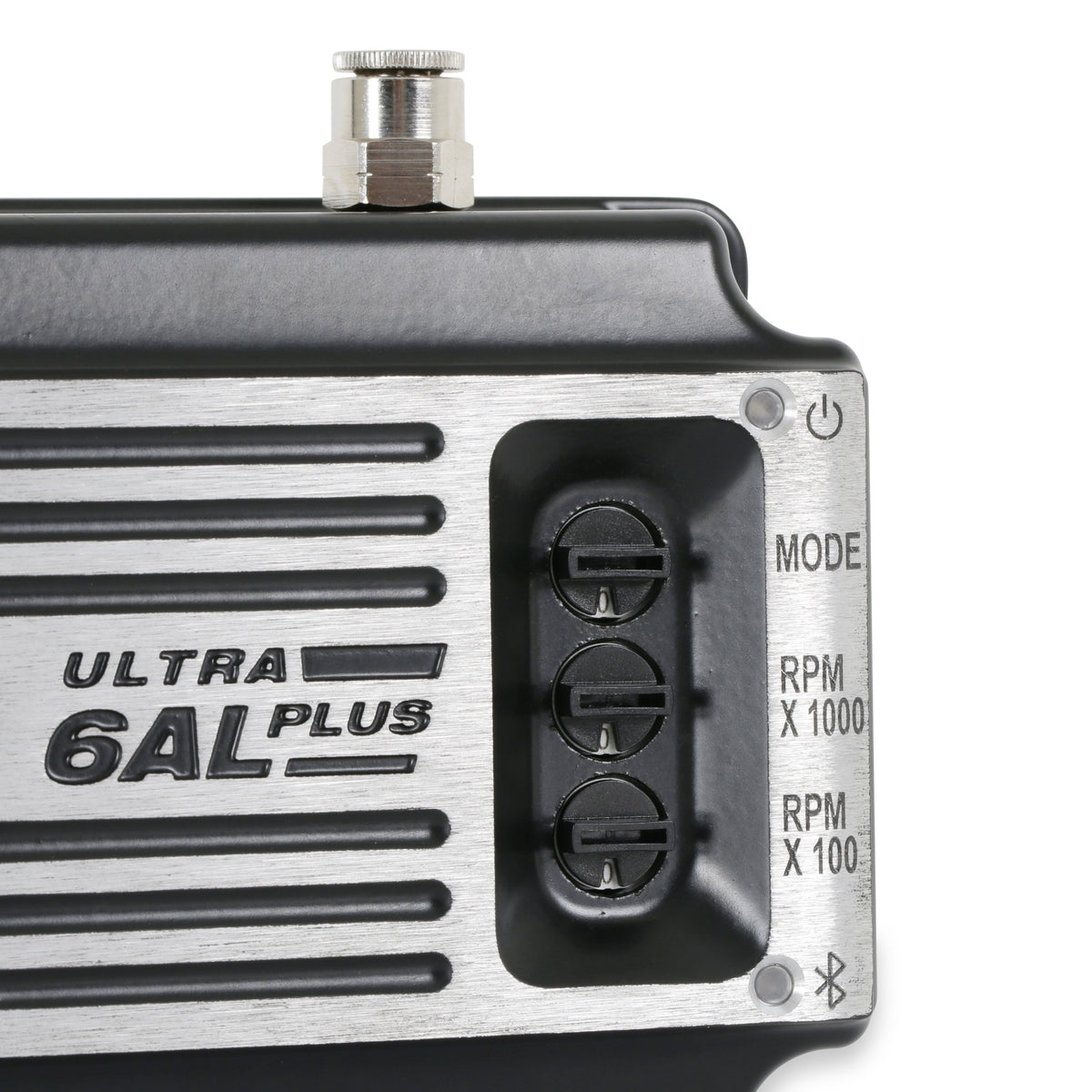

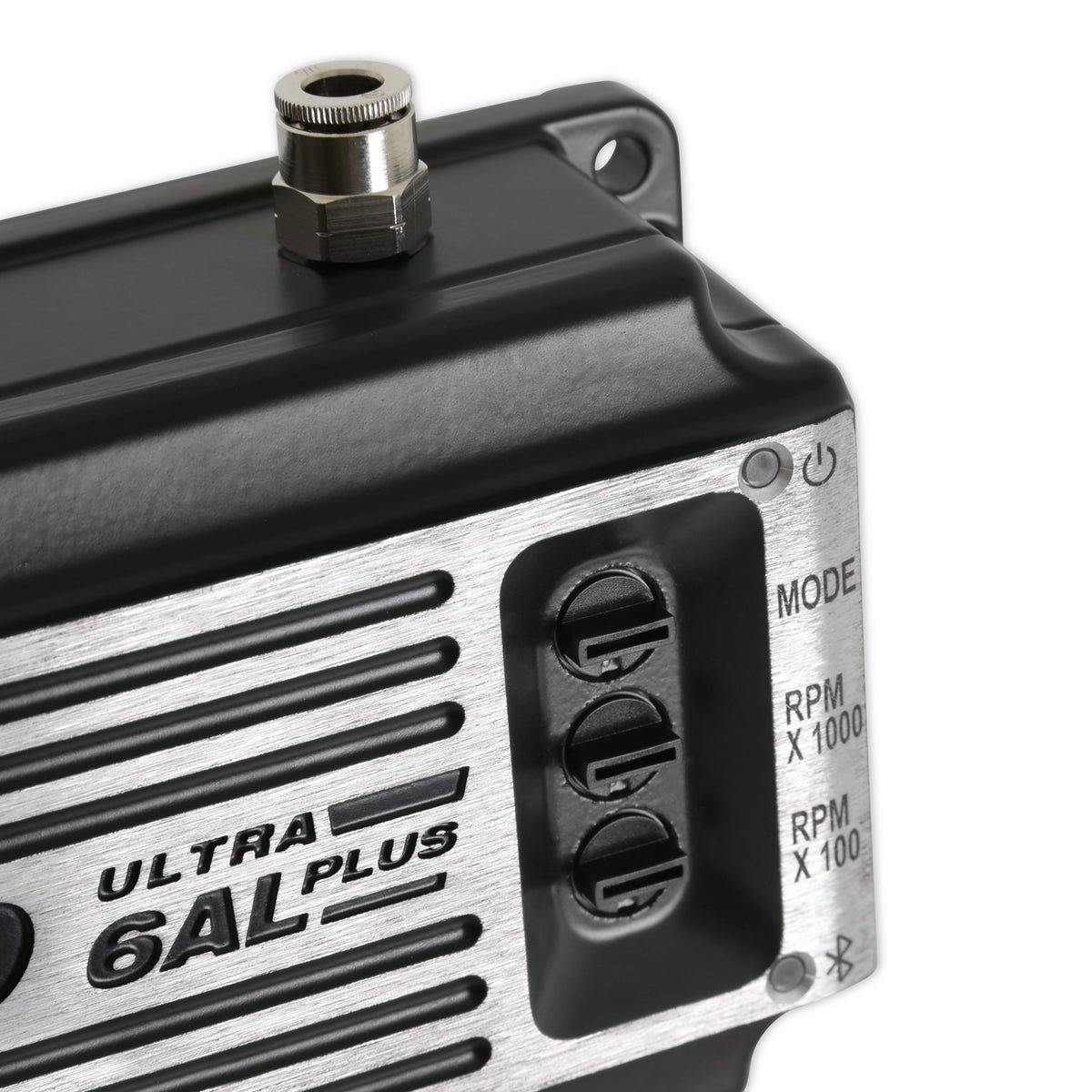

• Rotary Dials: Yes
• Secondary Voltage: 45,000
• Spark Energy (mJ per spark): 135 - 150
• Sub Category: Control Modules
• Terminal Gender: Male
• Terminal Quantity: 20
• Voltage Required: 12-15
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 2.9 lb
