MSD 7227 Ultra 7AL Ignition

Genuine MSD part.

For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for t

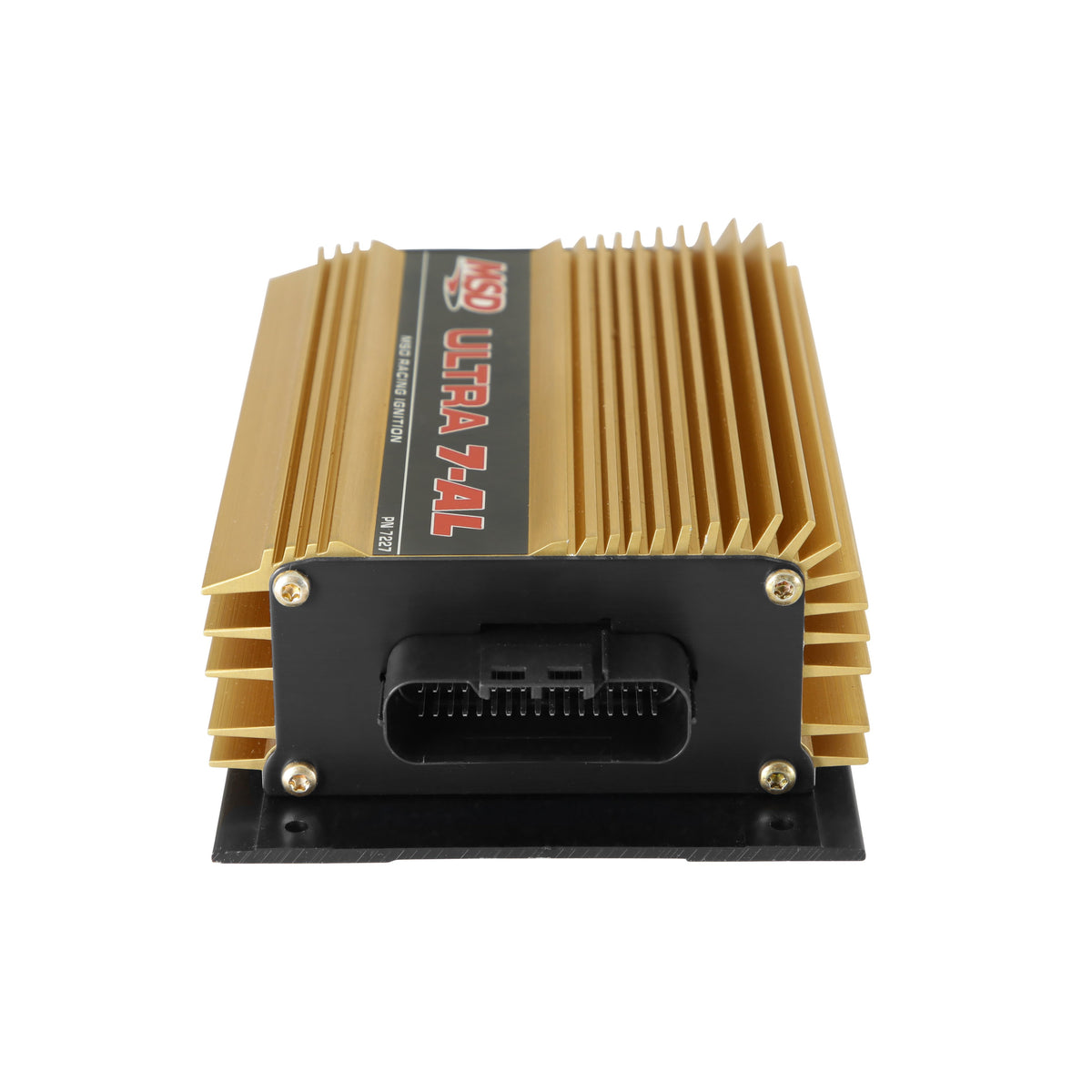

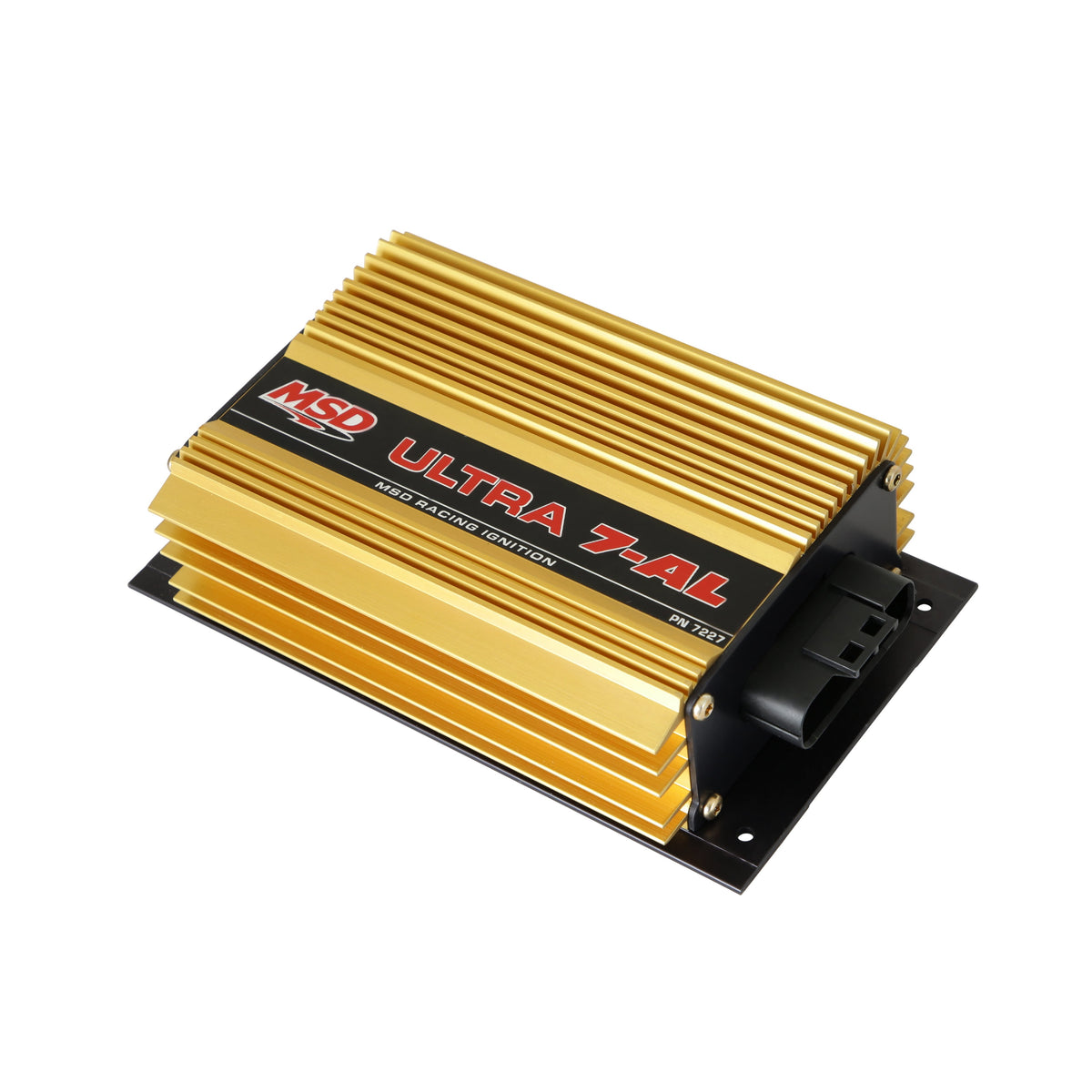

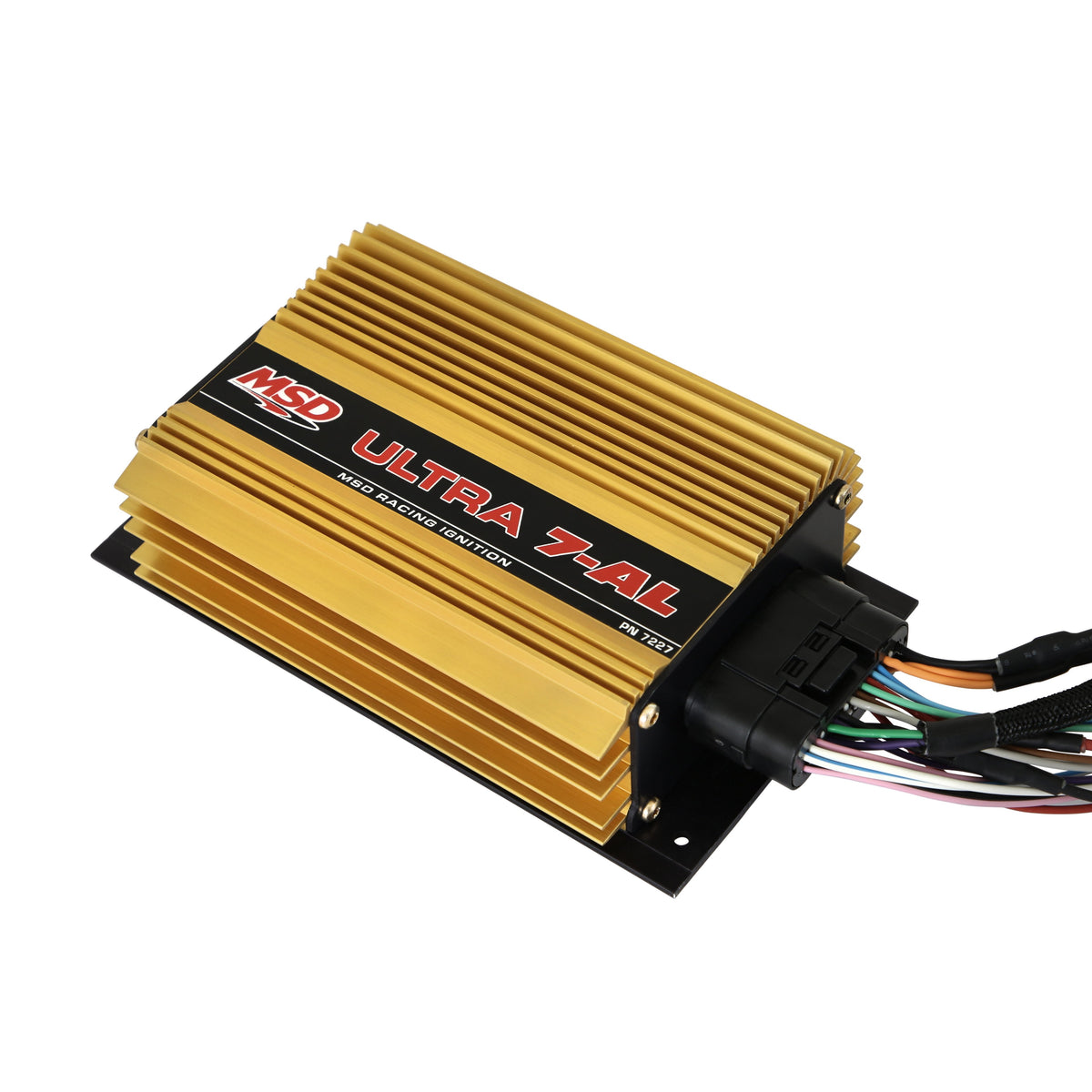

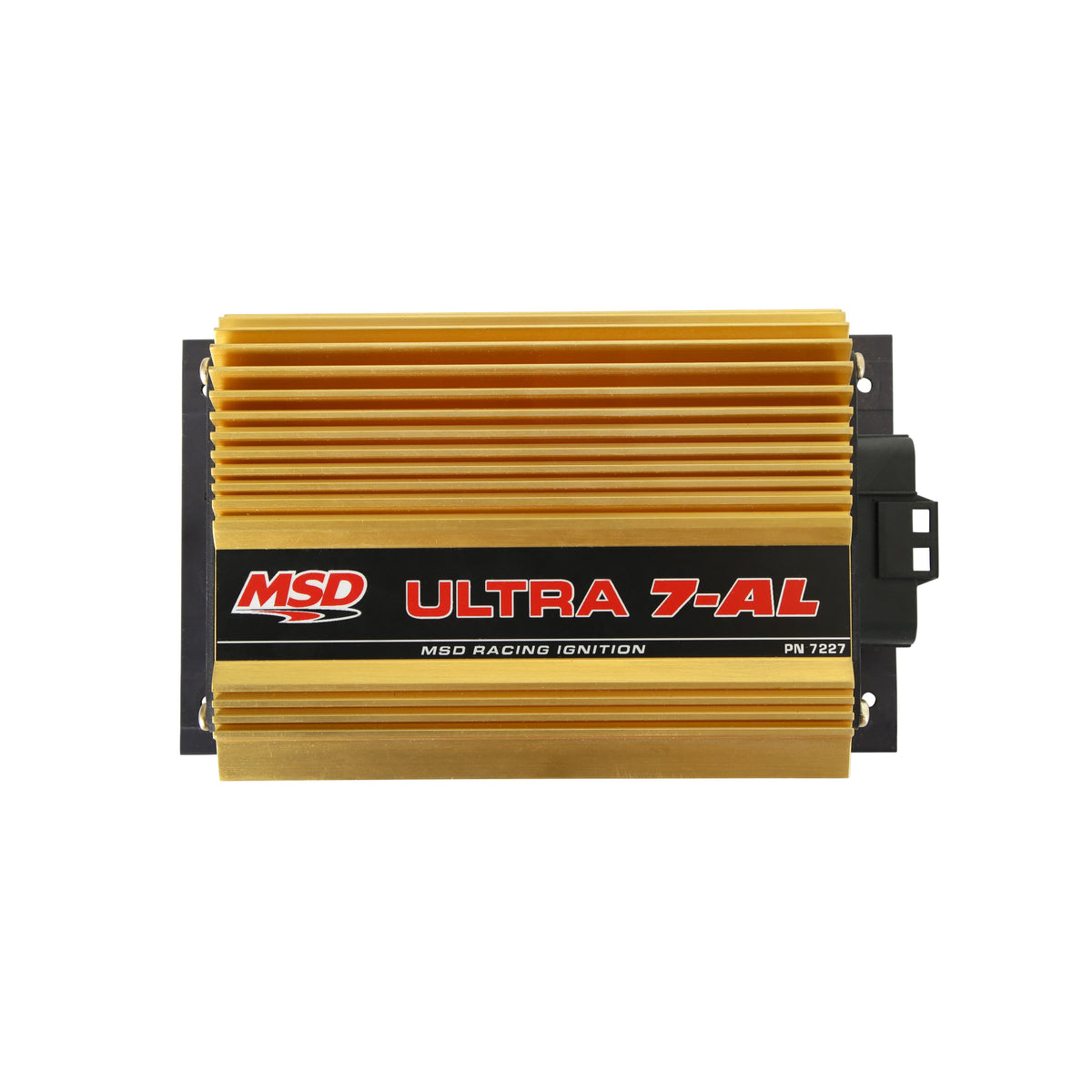

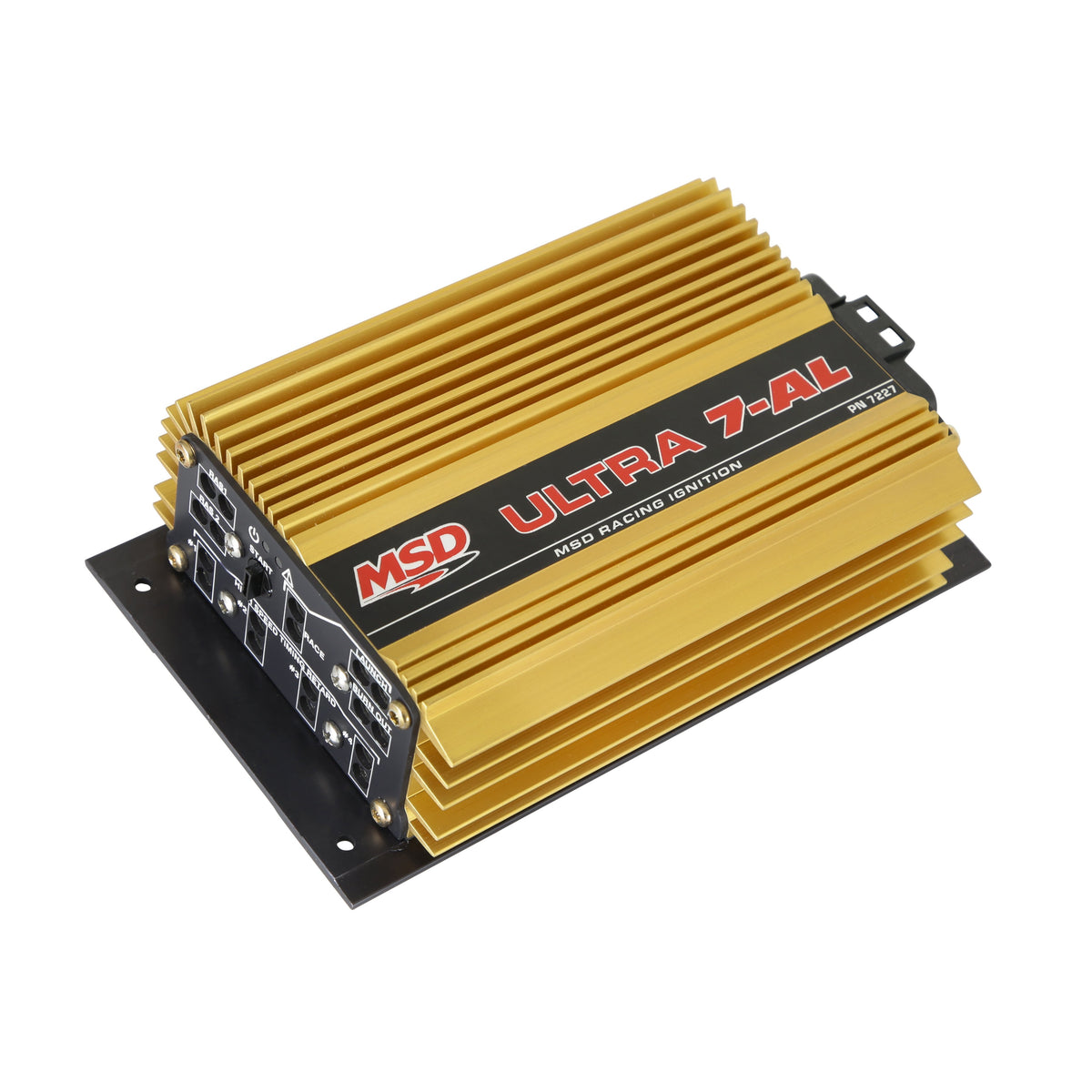

MSD ignition control box, part number 7227, supplied new.

Key Features

• Quickens Throttle Response
• High Power: 1.8A per 1K RPM (14.7A @ 8K RPM) Low Power: 0.9A per 1K RPM (7.2A @ 8K RPM)
• Launch Rev Limit
• On the Fly Power Output Selection
• The Ultra 7AL is 56% lighter, and over 50% smaller than the 7AL-3
• Uses familiar Pills for Rev Limit and Timing Retard Adjustments

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 7227
• Item Type: Electrical
• Color: Gold
• Connector Gender: Male
• Connector Quantity: 1
• Current Draw: 6000 RPM, 8000 RPM
• Grade Type: Performance
• Ignition Type: Performance
• Maximum RPM: Firmware Limited to 15K RPM
• Mount Type: Surface Mount
• Mounting Hardware Included: No
• Primary Voltage: High Power: 548V Low Power: 387V
• Product Type: Ignition Box
• Secondary Voltage: 40KV with Coil PN 82612
• Spark Energy (mJ per spark): 330
• Sub Category: Control Modules
• Terminal Gender: Female
• Terminal Quantity: 1
• Voltage Required: 7-20
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 4.6 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
