Genuine MSD part.

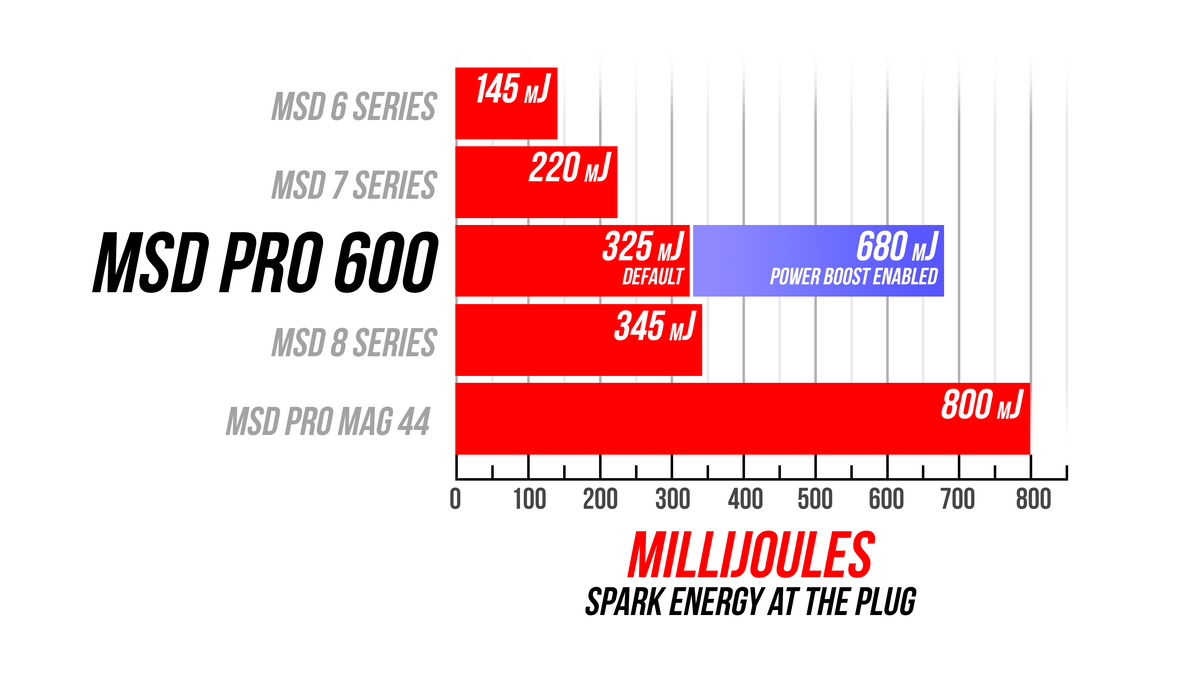

To further improve efficiency, unused spark energy is recycled back to the ignition capacitor reducing the power drawn from the battery. The Single Channel Pro 600 Ignition provides up to 20% additional spark gap energy and a 40% increase in spark duration over other 600 mJ ignitions available in the market.

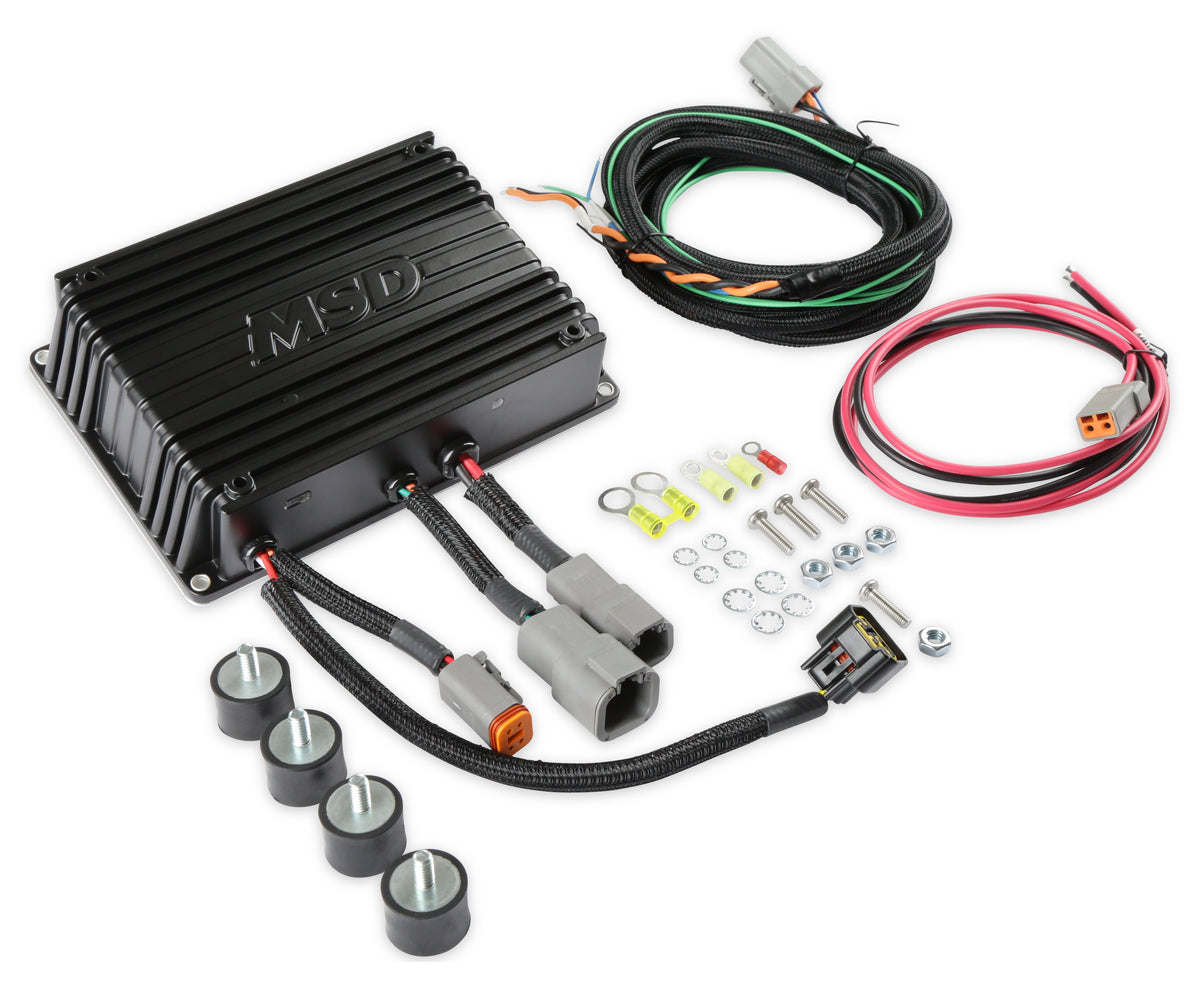

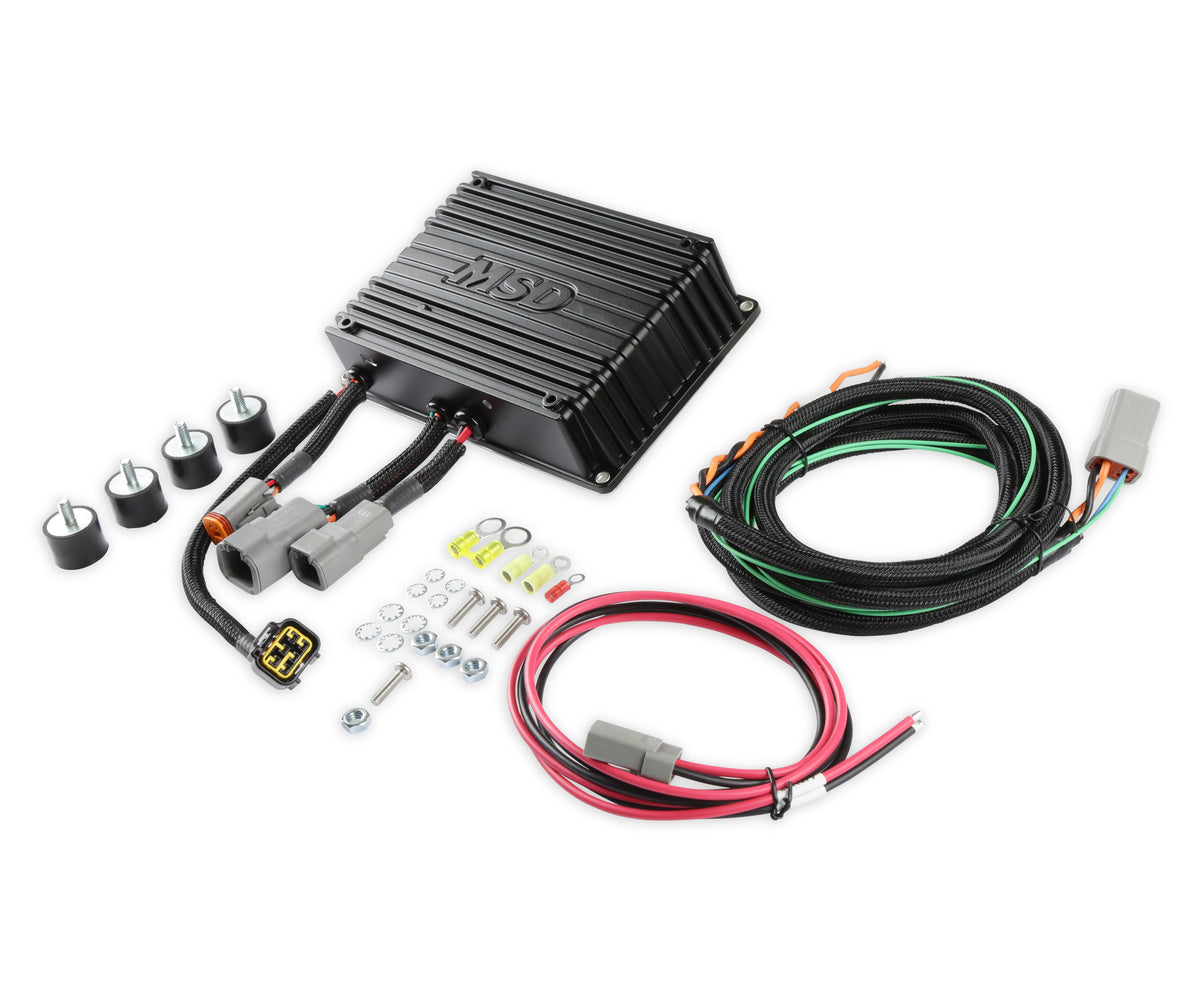

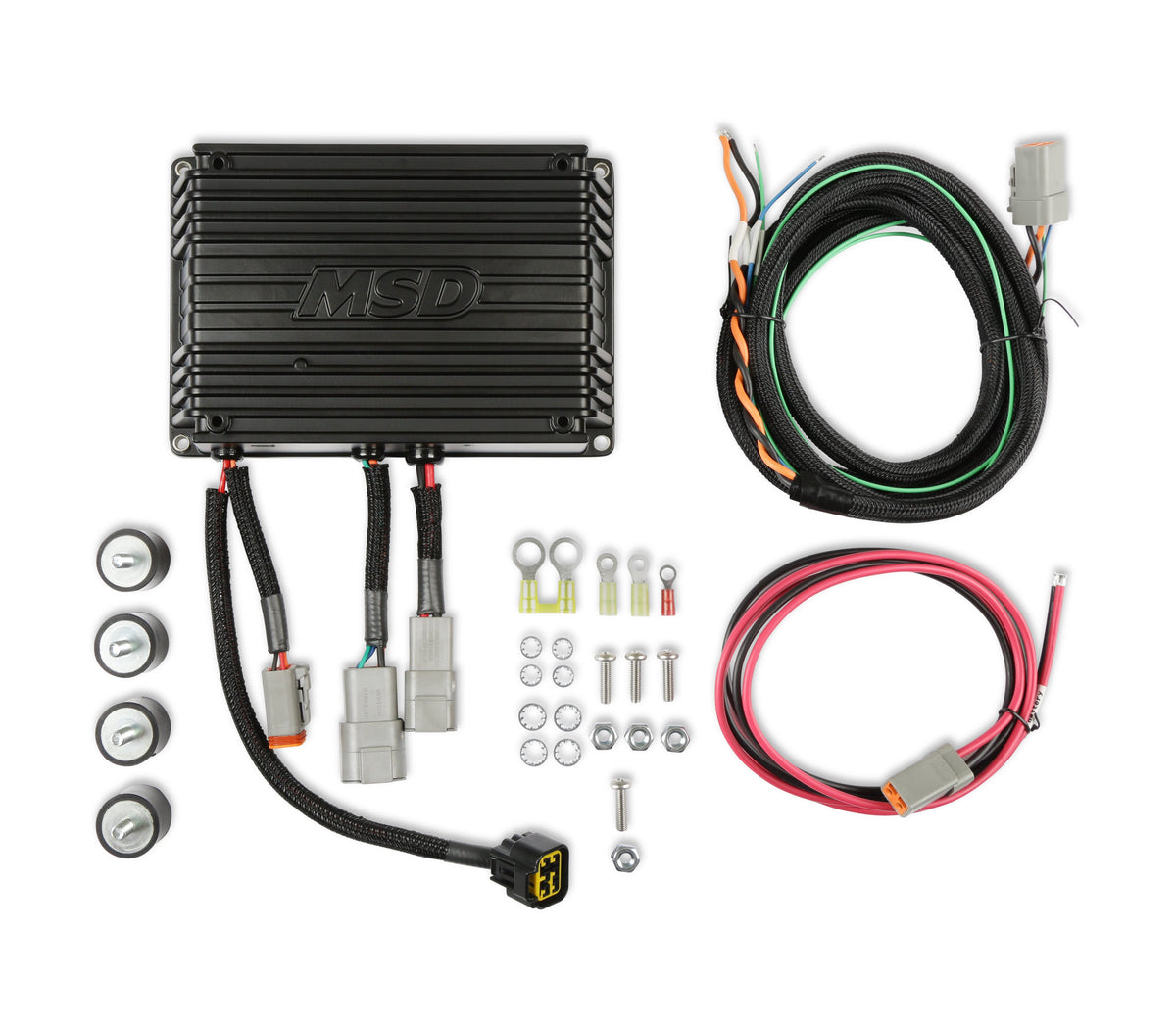

MSD ignition control box, part number 8001, supplied new.
Key Features
Operates between 12- 28V
Diagnostic LED detects the presence of faults
Direct plug-in to MSD Power Grid Controller PN7730
Spark current sense and recording for each firing
On-the-fly Power Output selection wire
Compatible with 8/6/4 cylinder engines
Fitment
Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
Brand: MSD
Manufacturer Part Number: 8001
Item Type: Electrical
Color: Black
Connector Gender: Male Female
Connector Quantity: 4
Current Draw: 1000 RPM
Grade Type: Race
Ignition Type: Performance
Maximum RPM: 15,000 RPM / 10,000 RPM at Full Power
Mount Type: Surface Mount
Mounting Hardware Included: Yes
Primary Voltage: 330-550
Product Type: Ignition Box
Secondary Voltage: 50,000
Spark Energy (mJ per spark): 250-680
Sub Category: Control Modules
Terminal Gender: Male Female
Terminal Quantity: 16
Country of Manufacture: United States
Condition: New
Shipping Weight: 5.1 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
