MSD 8569 for Ford 351C-460 Crank Trigger Distributor

Genuine MSD part.

These distributors have a low-profile cap assembly to clear busy intake set-ups and are topped with MSD's new Rynite-molded Ford-style cap and wire retainer. The low design is accomplished because the only thing under the cap is a rotor! These distributors don't have an advance assembly or pick-up so they must be used with a Crank Trigger. Since these distributors are designed for racing applications, a ball bearing is pressed into the housing to guide the polished steel shaft. Each distributor is supplied with a bronze gear.

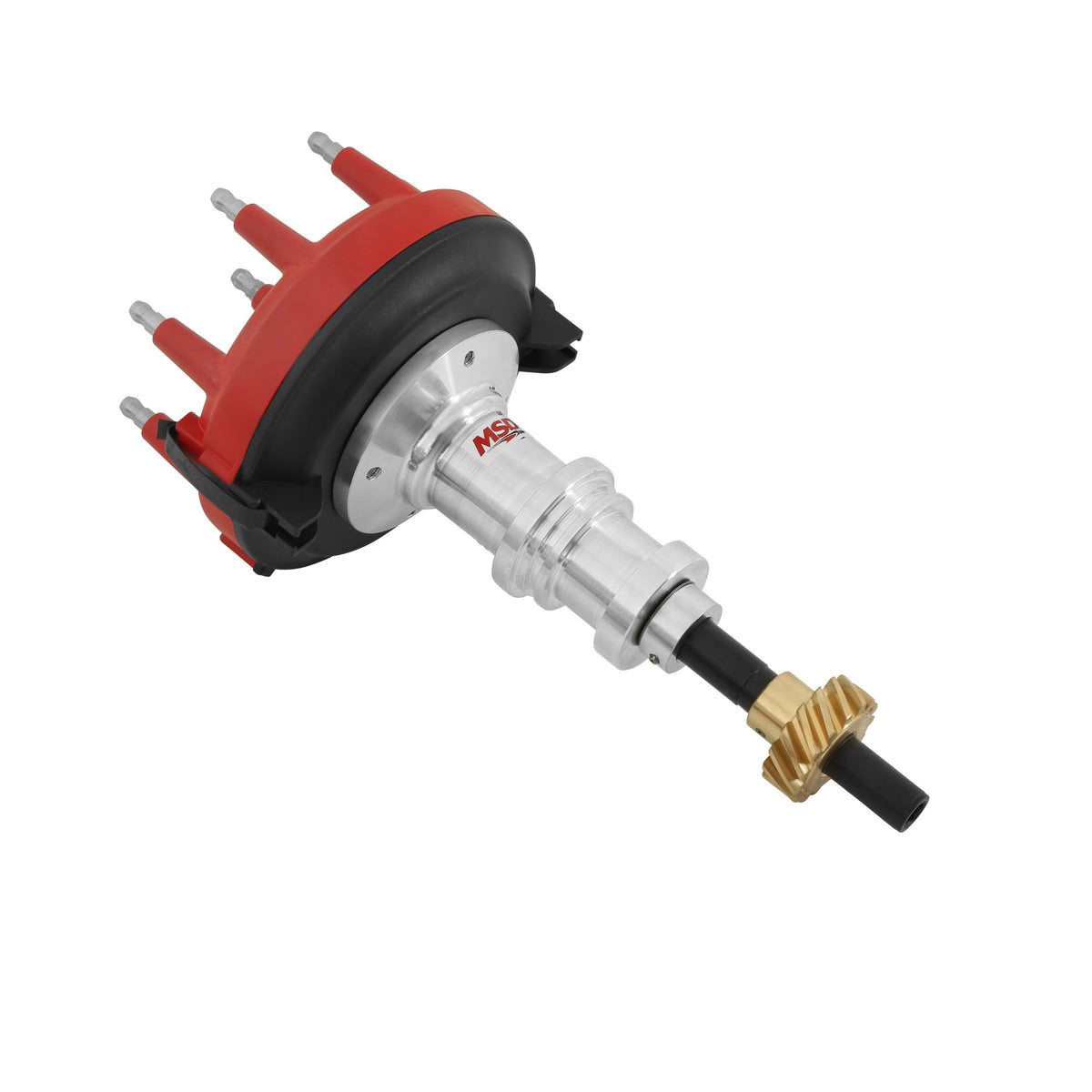

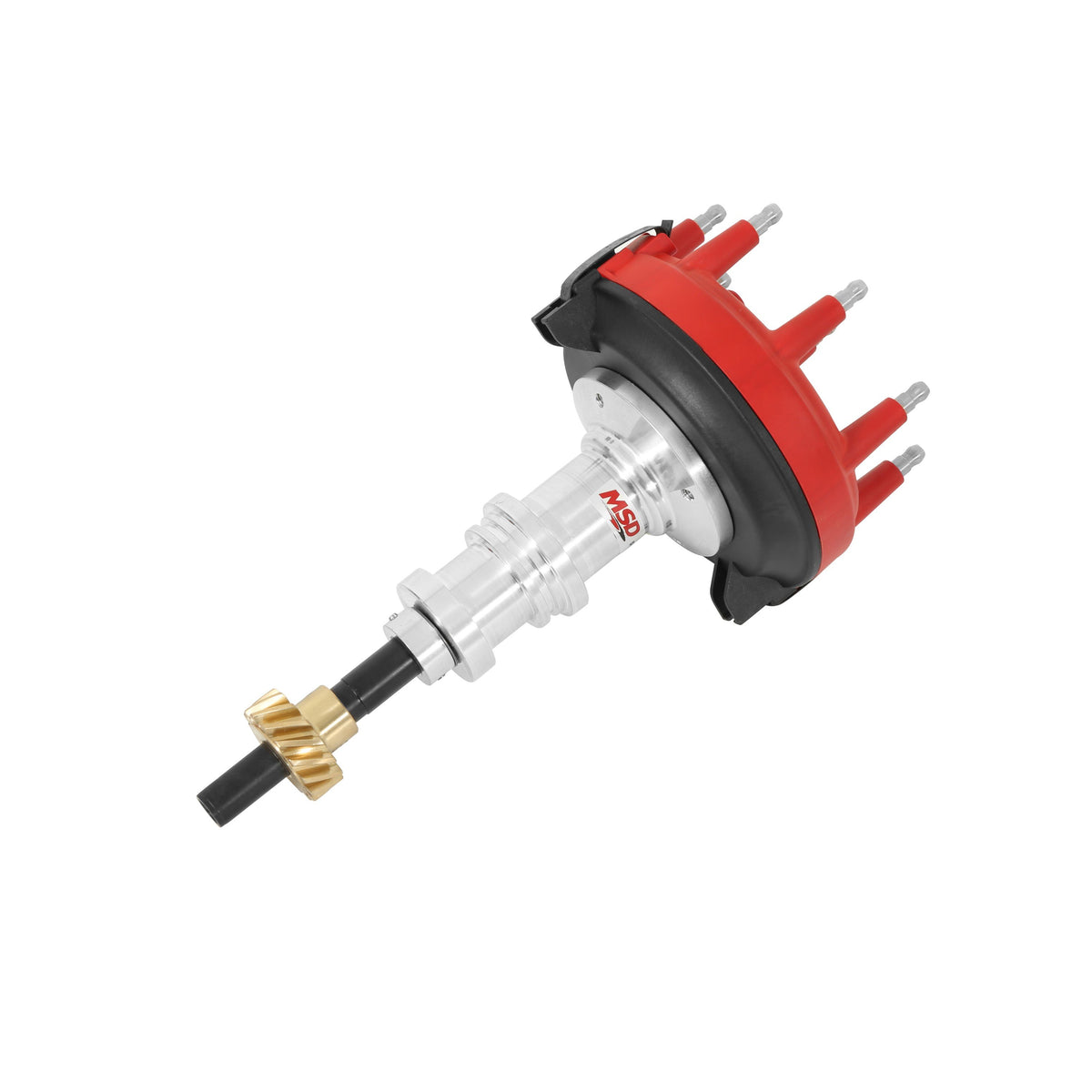

MSD crank trigger ignition distributor, part number 8569, supplied new.

Key Features

• Must be used with an MSD Crank Trigger and MSD Ignition Control

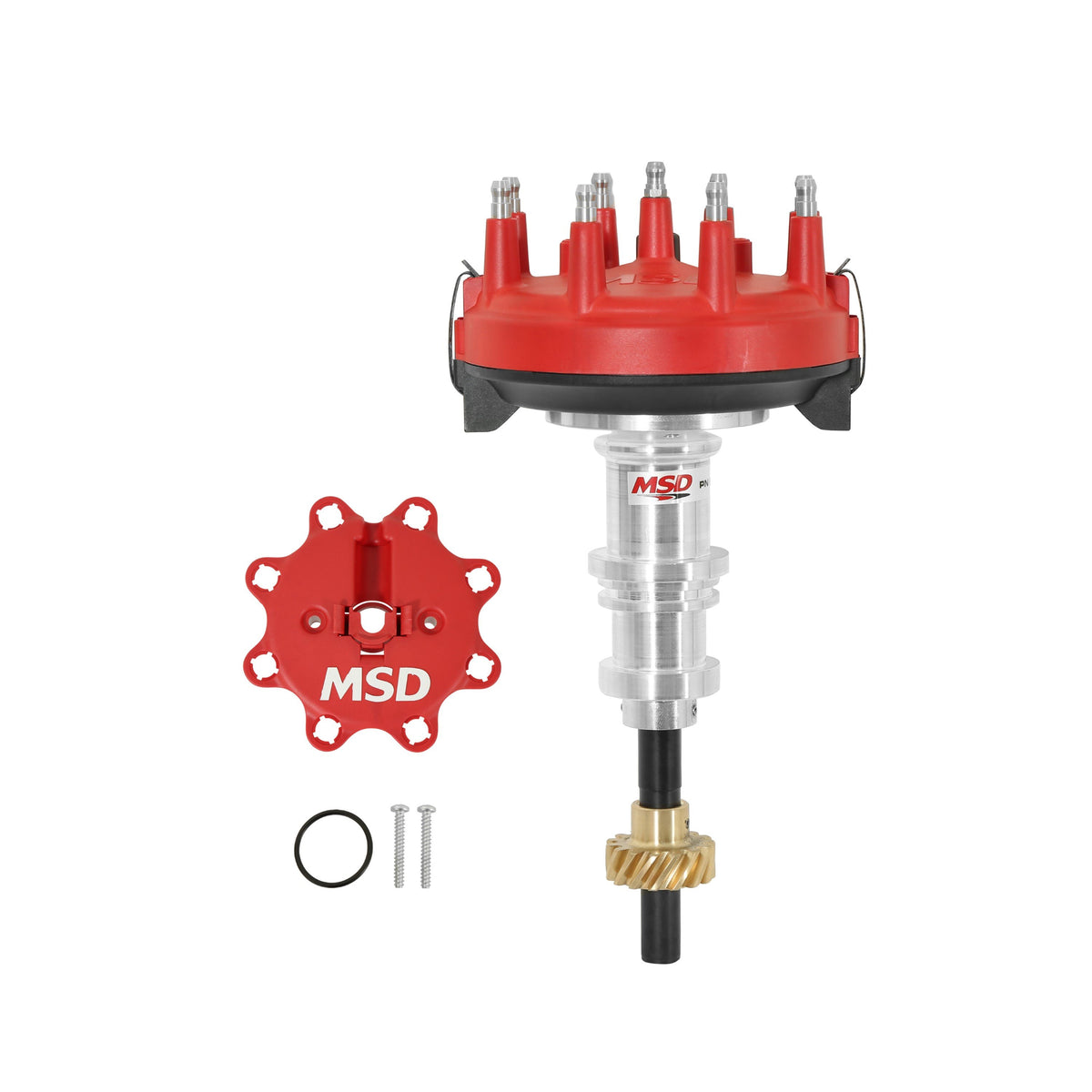

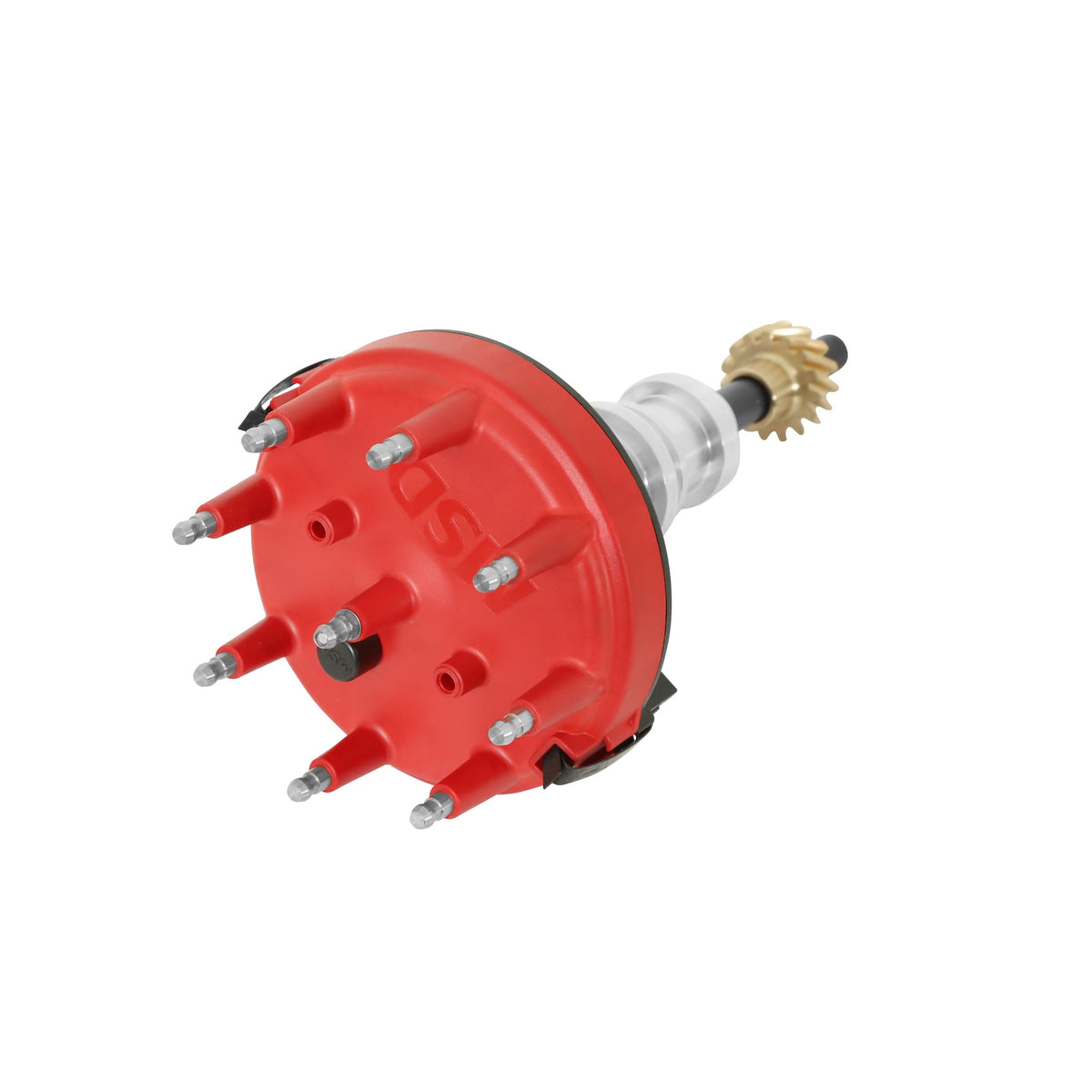

• Supplied with large diameter HEI style distributor cap and rotor
• Designed to fit low in the block for racing applications with sheet metal intake manifold combinations
• CNC machined billet aluminum housing and Dupont Rynite base
• Polished steel shaft with a QPQ coating for friction reduction
• Shaft is guided by a sealed ball bearing

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 8569
• Item Type: Electrical
• Color: Red
• Distributor Type: Crank Trigger

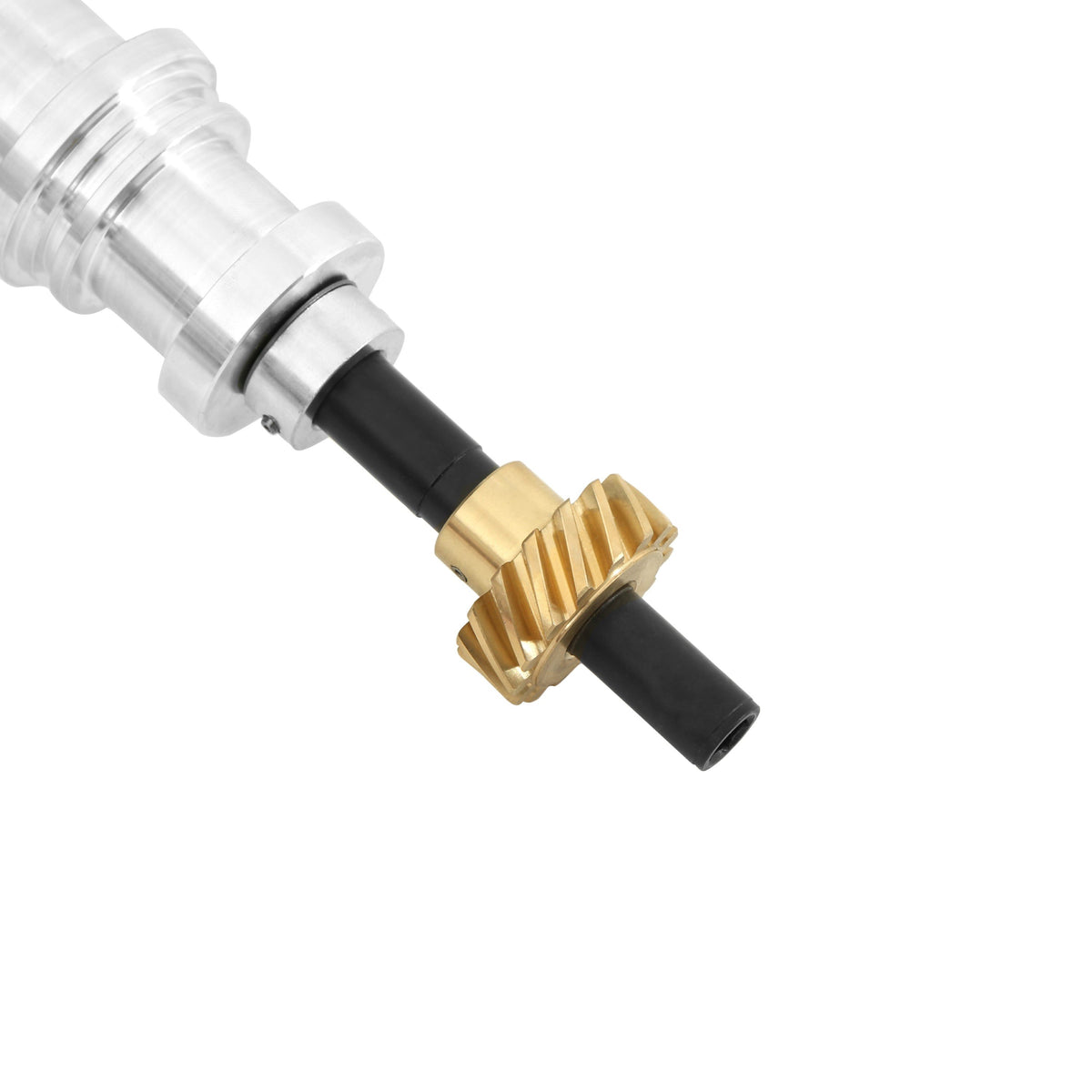

• Gear Material: Bronze
• Grade Type: Performance
• Product Type: Distributor
• Sub Category: Distributor and Magneto
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 4.0 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
