SuperPro Rear Subframe Rearward Bushing Kit SPF2166K

SuperPro Rear Subframe Rearward Bushing Kit SPF2166K

$ 33.99
$ 37.39 $ 33.99
Free shipping on orders over $99 (contiguous U.S.) — flat $10.99 under $99. Shipping details
✓ In Stock • Only 2 left

Suspension subframes form the connection between the suspension and the vehicle's body and passenger compartment. These are one of the key areas vehicle manufacturers use to tune the passenger comfort and isolation. This means in many vehicles the bushings that soft heavily-voided rubber is used. As this rubber ages and degrades it allows significant movement in the suspension mounting which impacts traction, handling and control. In more powerful vehicles the original soft rubber bushings can also contribute to wheel hop under acceleration and significant movement in changing loads or gear changes “ all of which sap performance and reduce passenger comfort.

SPR Bushings - Subframe

Vehicle Fitment

  • 1960-1966 Austin Mini
  • 1960-1967 Austin Mini 850

Specifications

  • Manufacturer Part Number: SPF2166K
  • Supplier Part Number: sprSPF2166K
  • Type: Subframe
  • Shipping Dimensions: 6 x 5.5 x 0.5 in
  • Shipping Weight: 0.15 lb
  • EAN: 9317745021667
  • Installation Time: 4 Hours
  • Bush Type: 1
  • QTY: 4
  • OD (A): 28.5
  • ID (B): 15.8
  • Length (C): 13.5
  • FL (D): 5
  • FLOD (E): 38

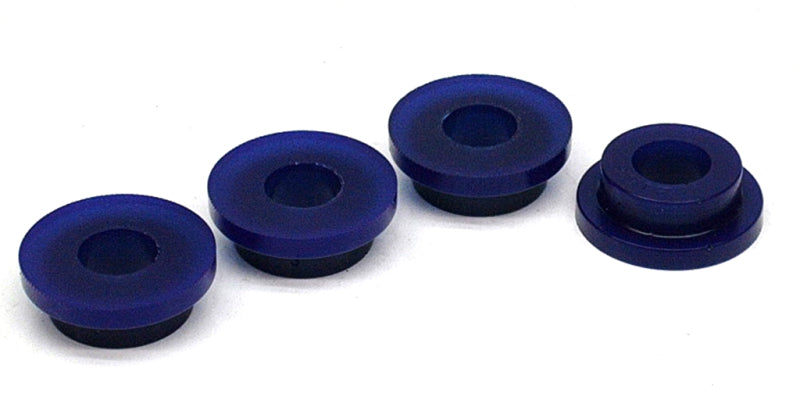

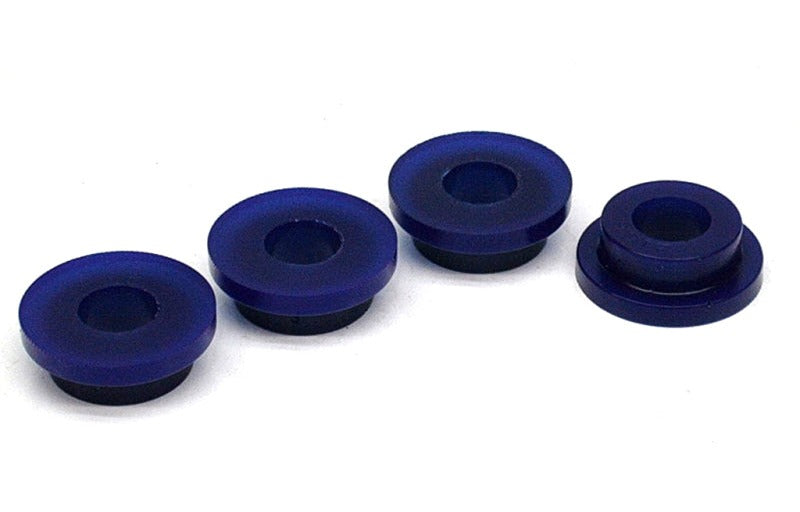

  • Kit Contents: 4 Bushings
  • Kits Required: 1
  • Fitting Position: Rear
  • Sub brand: SuperPro SPF
  • Product Note: Built tough and designed to be maintenance free; a complete, premium upgrade. Includes: 4 Subframe Bushings

Manufacturer Part Number: SPF2166K

Images are for illustrative purposes only. Actual product may vary.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer's Warranty — SuperPro

SuperPro Suspension Bushings, Sway Bars and Suspension Arms are covered by a Lifetime Warranty against manufacturing defects, and SuperPro places no limitation on the scope of use — on-road, off-road, racetrack and competitive motorsport all remain warranty-eligible. Ball Joints, Tie Rod Ends, Duroballs and Links are covered by a 3-year / 36,000-mile / 60,000-km warranty. Cover is limited to replacement of the originally supplied SuperPro component, and SuperPro may supply a superseded version; it does not reimburse or refund warranty-eligible products, installation, alignment or related expenses. Product finish and normal wear are excluded, including surface degradation and corrosion from road salt, debris or the elements, as is damage or premature wear caused by incorrect installation or by failing to align the wheels as recommended. Removal and replacement labour and consequential damage are not covered where local law permits that limit. A claim requires proof of original purchase from an authorised reseller showing the claimant as the purchaser, and the part must have been originally supplied for the specific application listed in the SuperPro catalogue.
