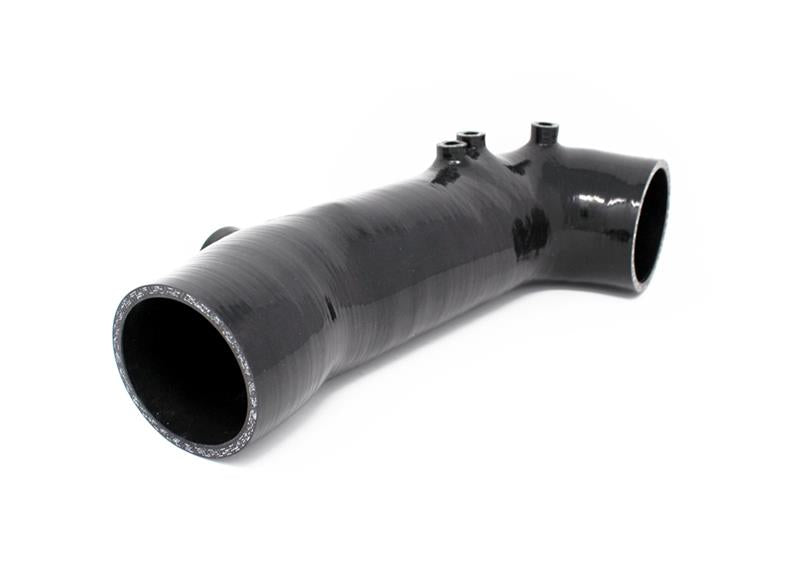

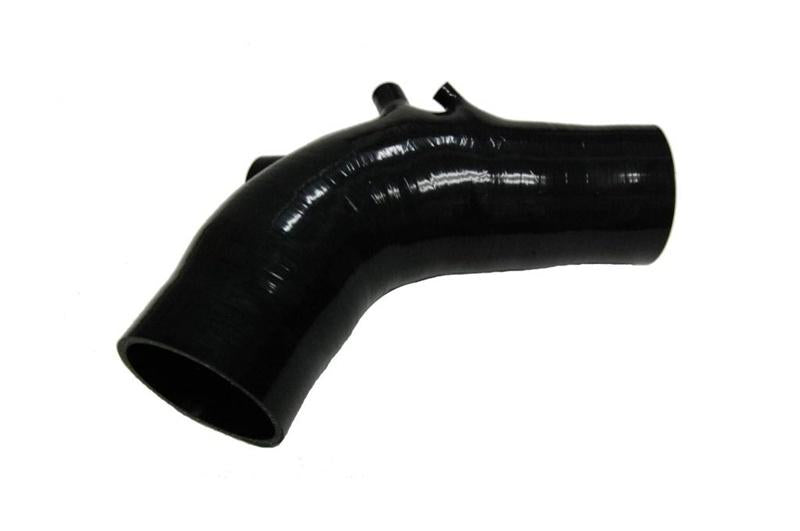

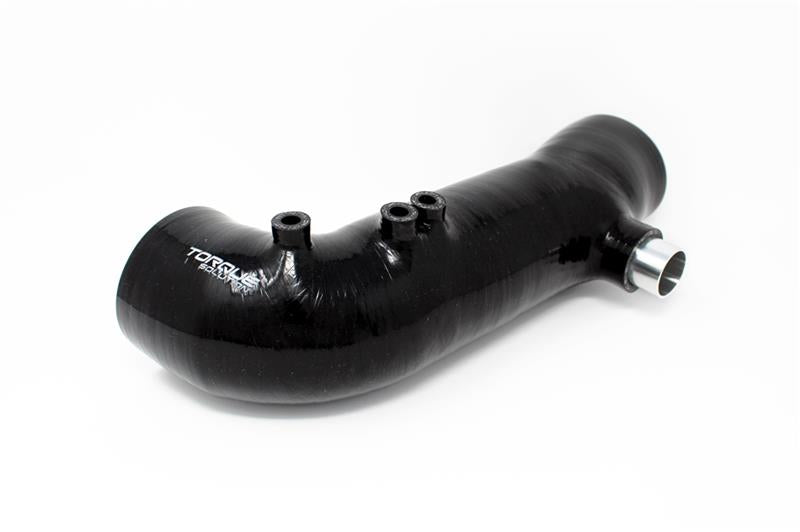

Torque Solution Turbo Inlet Hose Black (Recirc): 02-07 WRX / 04-20 STI / 05-09 Legacy GT (3in Inlet)

Torque Solution Turbo Inlet Hose for the Subaru EJ Engines w/ 3" Inlet Turbo. Our silicone inlet hose is much larger in size and smooths the air entering the turbo compared to the restrictive OEM corrugated inlet hose. Our inlet hose is made from 4 ply high grade silicone and wire reinforced to prevent collapsing under high pressure. We include 2 black anodized billet aluminum joiners to connect to either 2.75" or 3" intakes.

• Smooths Airflow Entering Turbo
• Increases Air Flow
• Eliminates failure prone corrugated rubber hose
• 4 Ply Silicone w/ Wire Reinforcement
• Includes Silicone Friendly Stainless Steel Hose Clamps
• Direct Fitment for Aftermarket 3" (76mm) Inlet Turbo's
• Recirculated BOV Inlet
• Limited Lifetime Warranty

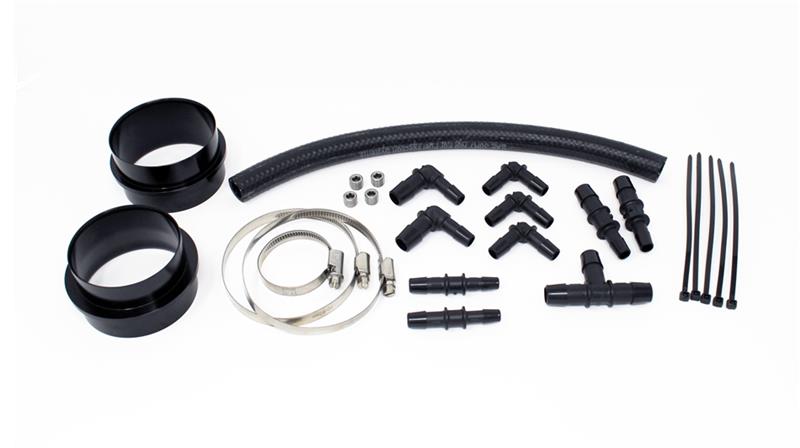

Includes:

• 3" Recirc Black Silicone Turbo Inlet Hose (1)
• 3" Billet Aluminum Coupler (for 3" Intakes) (1)
• 3" to 2.75" Billet Aluminum Reducer Coupler (for 2.75" Intakes) (1)
• 1.25" Aluminum BOV Recirc Adapter
• 70-90mm Silicone Safe Worm Gear Clamp (2)
• 30-45mm Silicone Safe Worm Gear Clamp (1)
• 3/8" 90 Degree Nylon Elbows (3)
• 1/2" to 3/8" 90 Degree Nylon Reducer Elbows (2)
• 1/2" to 3/8" Straight Nylon Reducer (2)
• 5/16" to 3/8" Straight Nylon Reducer (2)
• 1/2" Nylon T Fitting (1)
• 1/2" Fuel/PCV Hose (13")
• 1/8 NPT Stainless Plugs (4) (for DIY TGV Conversion)
• Heavy Duty 10 Inch Zip Ties (5)
• *We recommend either using billet TGV Conversions or using the supplied 1/8 NPT plugs to convert the factory TGV for clearance.
• **Important note: The Torque Solution inlet bypasses the PCV Diagnosis Port. You will need to perform a simple bypass.

1. Locate PCV Diagnosis connector (grey or white depending on year), which located on the block next to throttle body.

2. You will need to use a pair of needle nose pliers to remove the jumper pin inside the PCV Diagnosis connector. This pin should pull out easily only using slight pressure. Do not discard the jumper pin removed from the connector.

3. Place the jumper pin into the female harness plug that was connected to PCV diagnosis connector. Use electrical tape to secure in place.

Vehicle Fitment

• 2004-2013 Subaru Forester
• 2002-2014 Subaru Impreza
• 2005-2009 Subaru Legacy
• 2015-2020 Subaru WRX STI

Please verify exact fitment for your trim and engine before ordering.

Manufacturer Part Number: TS-SU-565-R

Images are for illustrative purposes only. Actual product may vary.
